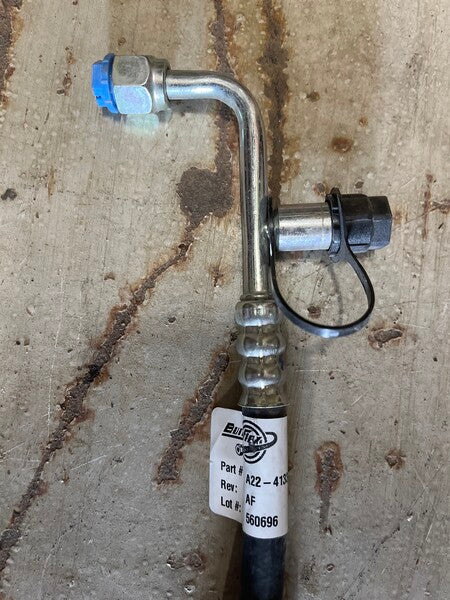

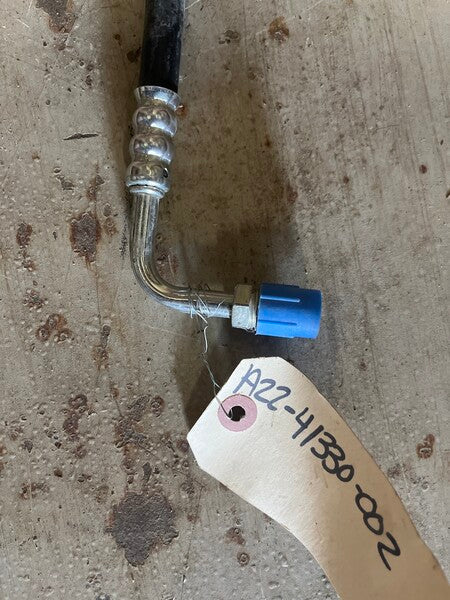

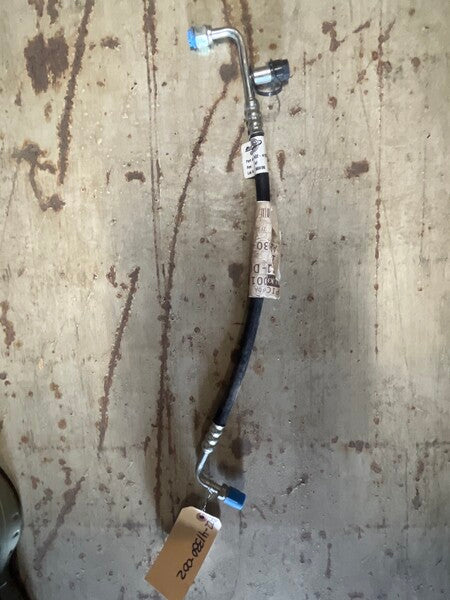

A22-41330-002 - A/C HOSE ASSEMBLY, 6, 20.50IN

Description:

Type: A/C Hose Assembly
Manufacturer: Freightliner
Length: 20.50 inches

Fittings: #6 fittings on both ends, angled at 90 degrees. One end has a beaded female swivel nut, and the other has a beaded male swivel nut. The thread size for both fittings is 5/8-18.

Hose Material: Synthetic Rubber
Fittings Material: Steel
Tube Material: Steel
Cover Material: Elastomer

Tube Dimensions:
Inner Diameter: 0.30 inches
Outer Diameter: 0.38 inches
Wall Thickness: 0.04 inches

Hose Dimensions:
Inner Diameter: 0.32 inches
Outer Diameter: 0.62 inches
Wall Thickness: 0.15 inches

Cross Ref#:

Fits Models:

Freightliner
