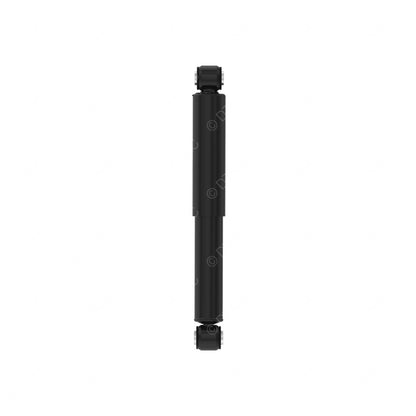

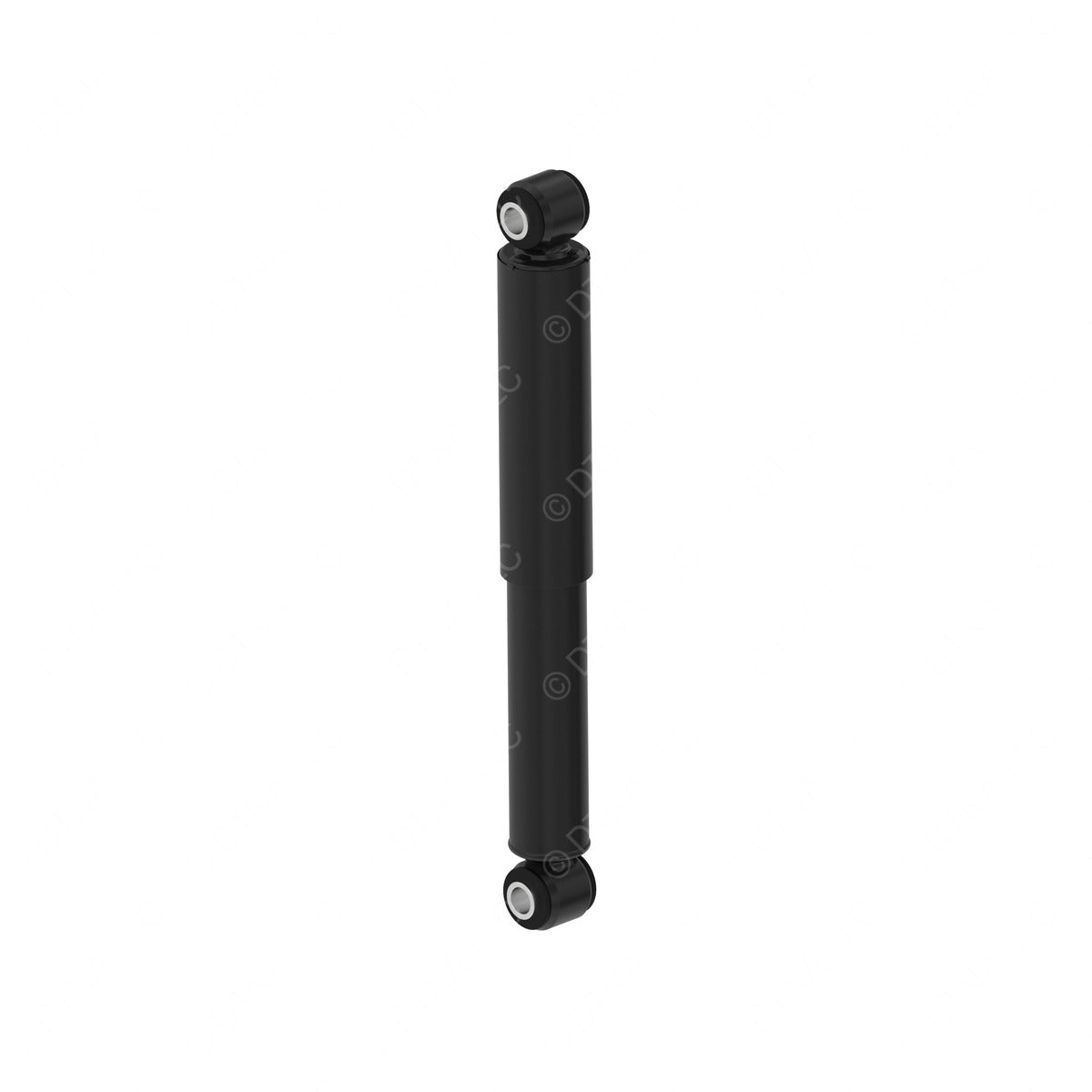

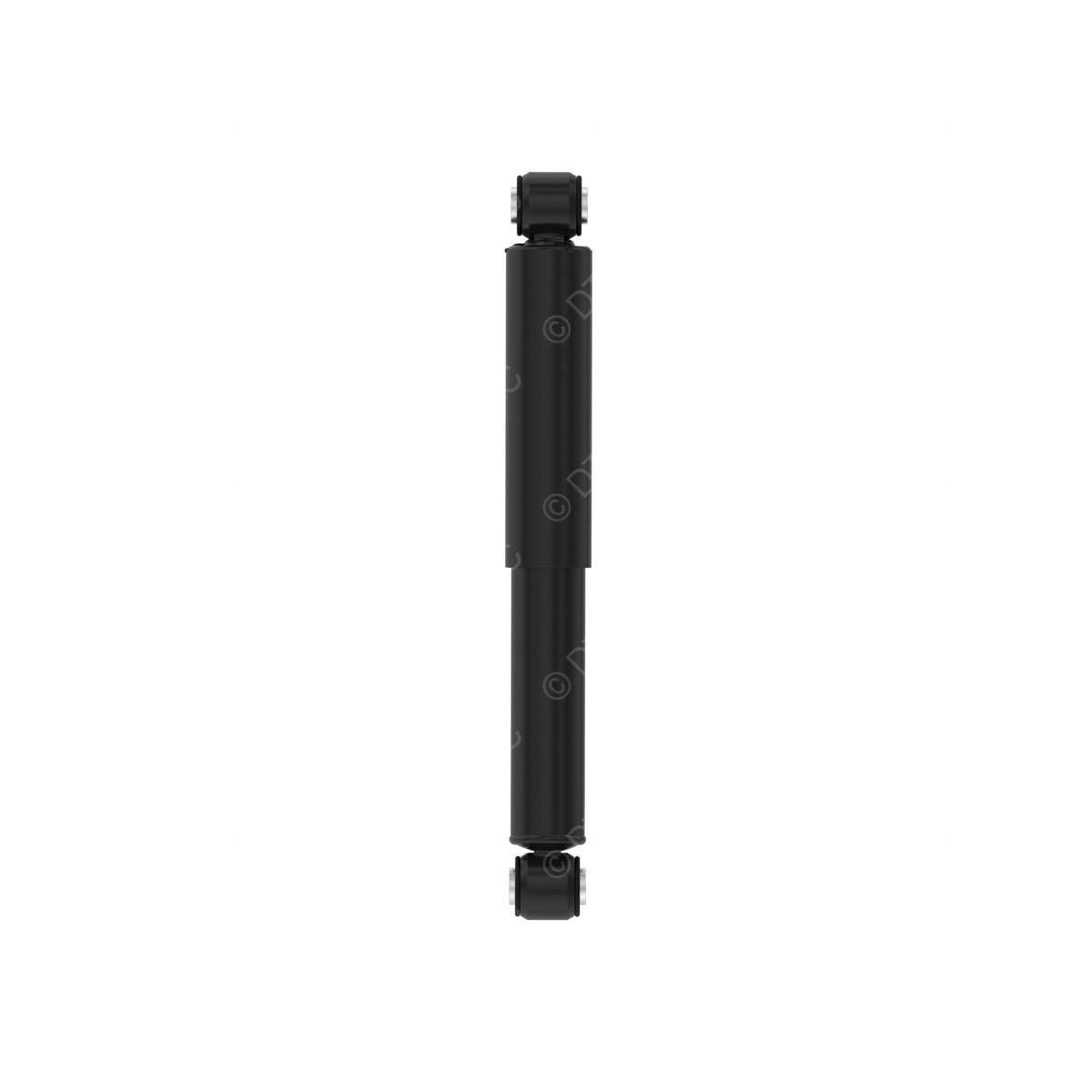

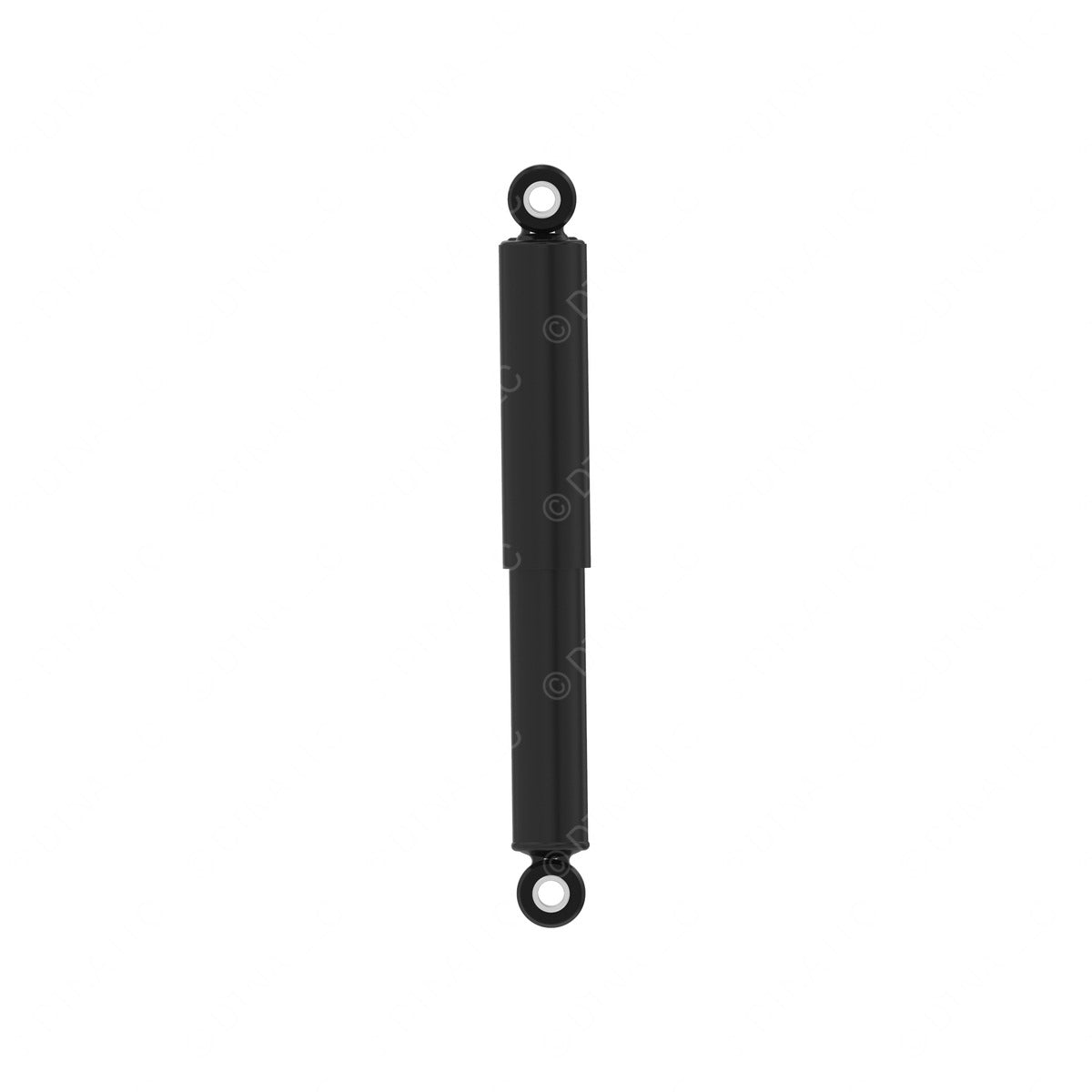

10-13684-000 - SHOCK ABS-CHAS,05,FRONT,SACHS

10-13684-000 - SHOCK ABS-CHAS,05,FRONT,SACHS

$115.39 USD
$115.39 USD
Sale Sold out

10-13684-000 - SHOCK ABS-CHAS,05,FRONT,SACHS

CALL TO VERIFY AVAILABILITY

Description:
  • Mounting Location: Front
  • Maximum Compression Force: 1890 N
  • Maximum Pull Capacity: 12000 lbs
  • Basic Static Load Rating: 30000 N
  • Color: Black
  • Finish: Painted
  • Stroke Length: 215 mm
  • Bore Diameter: 36 mm
  • Shock Tube Diameter: 55 mm
  • Cover Diameter: 64 mm
  • Compressed Length: 364 mm
  • Extended Length: 579 mm
  • Piston Rod Diameter: 15 mm
  • Rebound: 8330 N

Ref #:

 VMRS: 016-003-001

Fits Models:

Daimler/Detroit Diesel and Freightliner Series

Weight (lbs.):

 8.0

Pkg. Dimensions (in):
