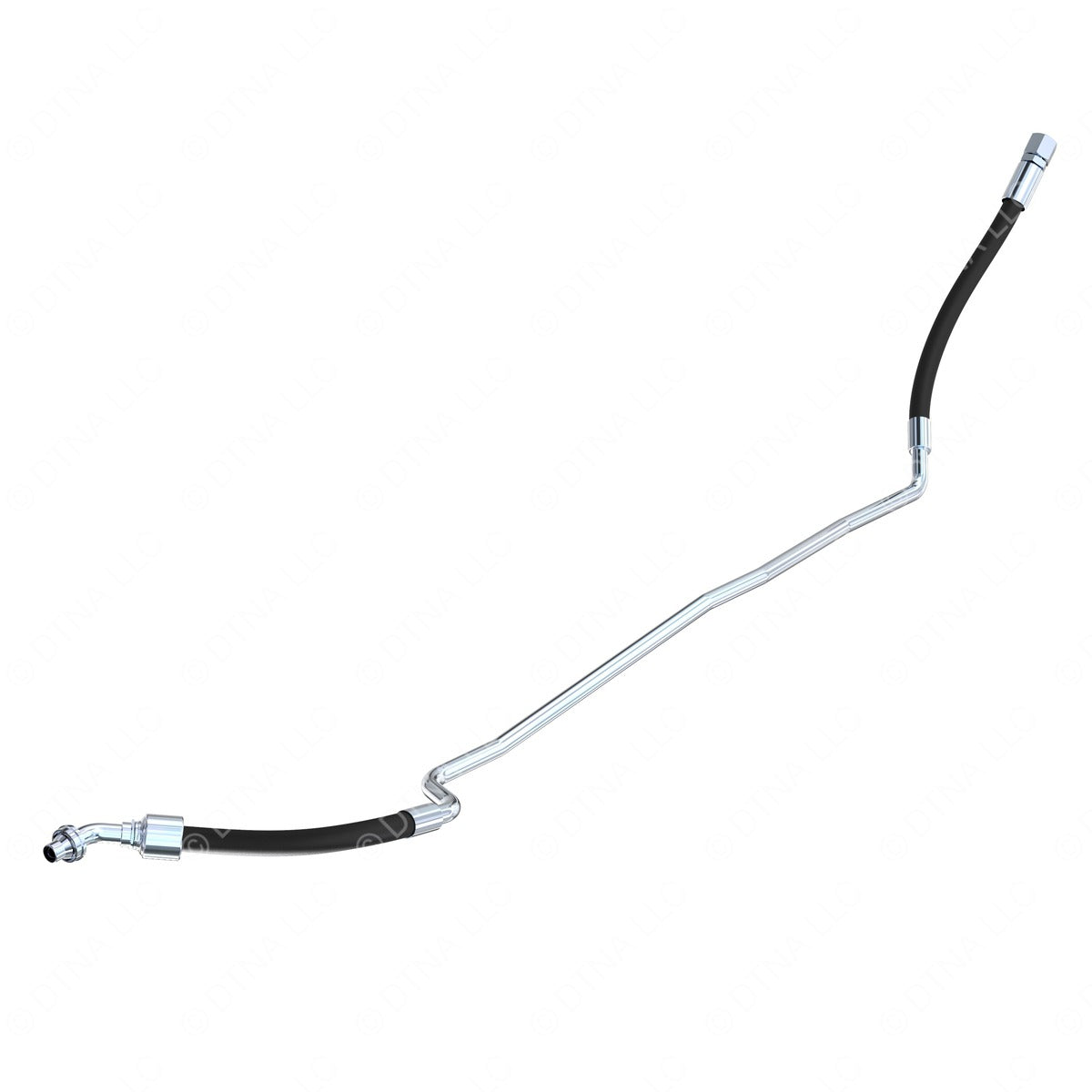

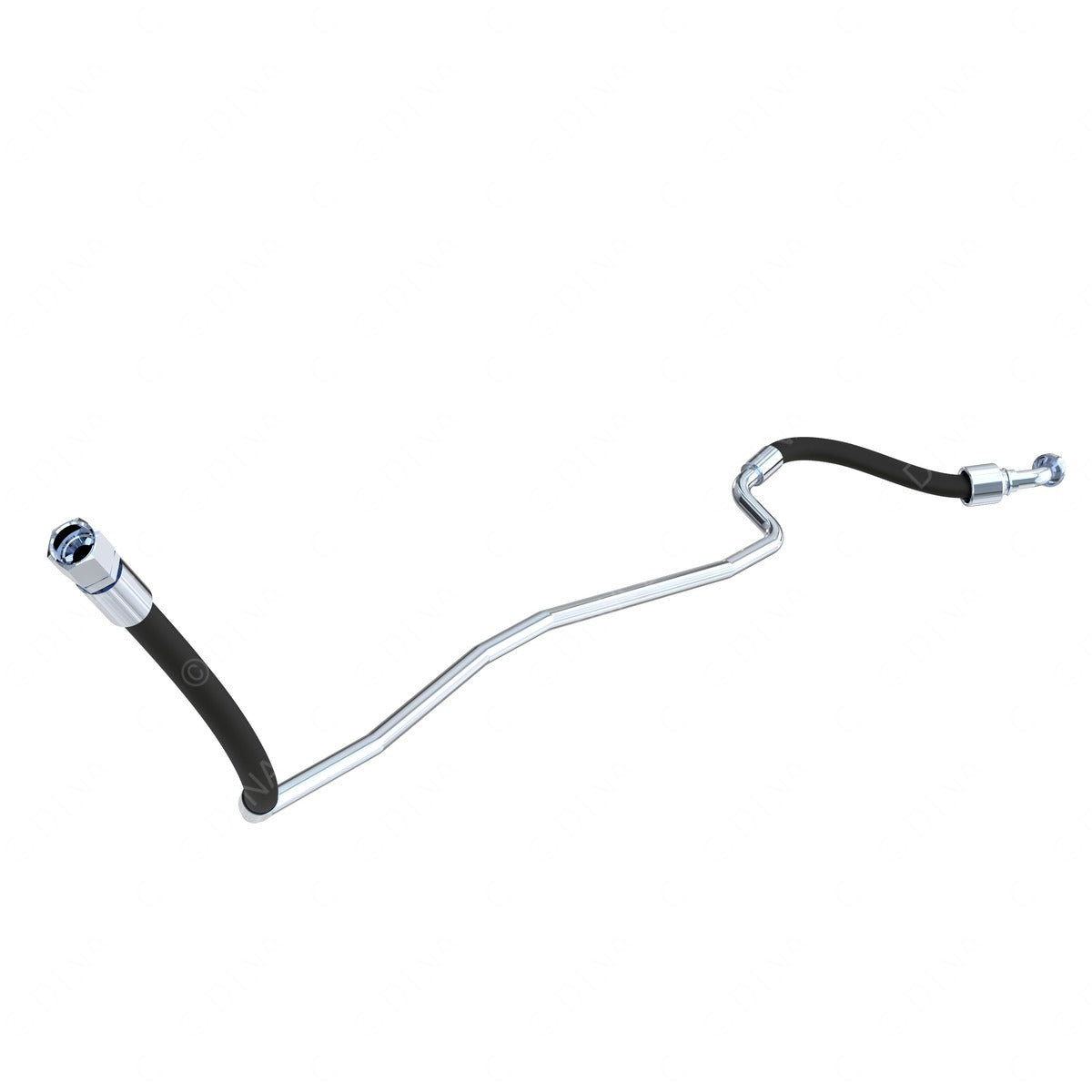

07-23961-001-HOSE -TRANSMISSION, RETURN, COOLANT TO OIL, 3K

07-23961-001-HOSE -TRANSMISSION, RETURN, COOLANT TO OIL, 3K

$271.89 USD
$271.89 USD
Sale Sold out

07-23961-001-HOSE -TRANSMISSION, RETURN, COOLANT TO OIL, 3K

CALL TO VERIFY AVAILABILITY

Description:
  • Temperature Rating: -40 to 300 Deg.F
  • Maximum Operating Pressure: 250 psi
  • Thickness: 1.24 mm
  • Outer Diameter: 19.05 mm
  • Inner Diameter: 16.56 mm
  • Overall Length: 1920.88 mm
  • Tube 2 Inner Diameter: 19.05 mm
  • Tube 2 Wall Thickness: 7.62 mm
  • End 1 Flare Fit Angle: 45 deg
  • End 1 Elbow Fitting Angle: 45 deg
  • End 2 Flare Fit Angle: 37 deg
  • Standard End 2 Fitting Size: #12
  • Standard End 1 Fitting Size: #12
  • Material: Steel
  • Finish: Zinc Plated
  • End 1 Fitting Type: Quick Connector
  • End 2 Fitting Type: Straight Female Swivel Nut

Ref #:

 VMRS: 026-013-017

Fits Models:

Daimler/Detroit Diesel and Freightliner Series

Weight (lbs.):

 2.0

Pkg. Dimensions (in):
