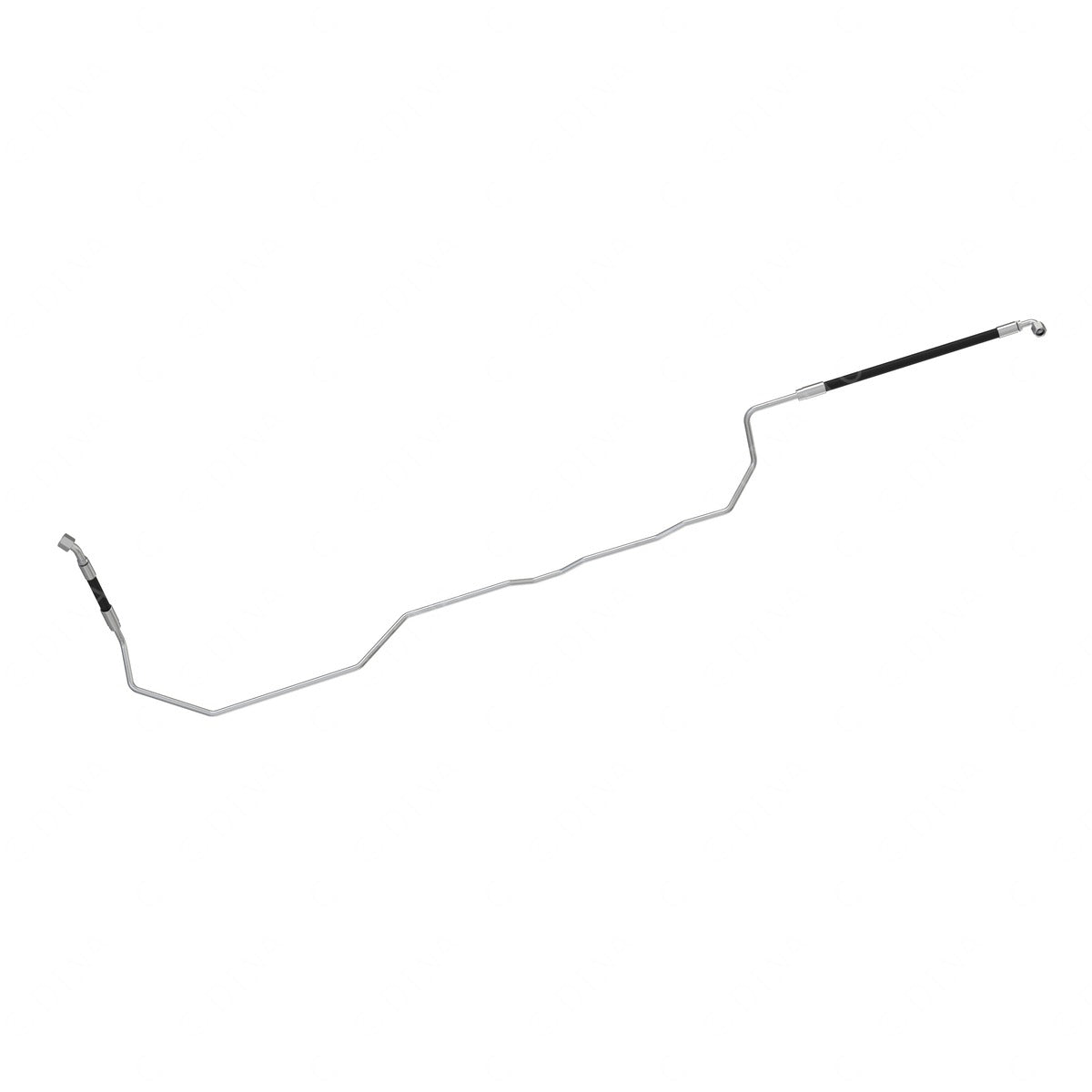

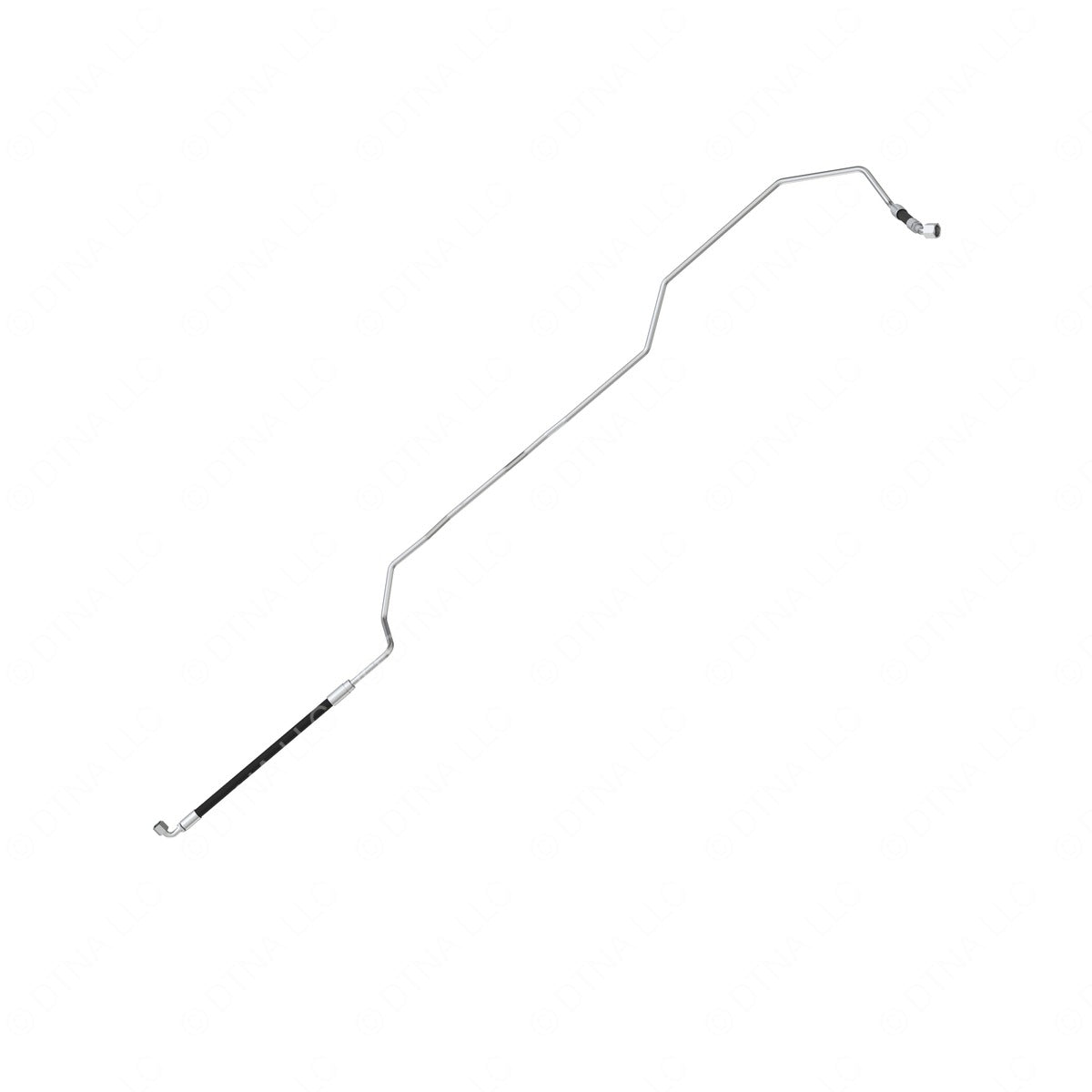

07-23401-000 - TUBE-RETURN,AIR TO OIL,HDEP,RH

07-23401-000 - TUBE-RETURN,AIR TO OIL,HDEP,RH

$251.37 USD
$251.37 USD
Sale Sold out

07-23401-000 - TUBE-RETURN,AIR TO OIL,HDEP,RH

CALL TO VERIFY AVAILABILITY

Description:
  • Temperature Rating: -40 to 300 Deg.F
  • Maximum Operating Pressure: 250 psi
  • Thickness: 1.27 mm
  • Outer Diameter: 12.70 mm
  • Inner Diameter: 10.16 mm
  • Overall Length: 2581.90 mm
  • Tube 2 Inner Diameter: 12.70 mm
  • Tube 2 Wall Thickness: 7.62 mm
  • End 1 Flare Fit Angle: 37 deg
  • End 1 Elbow Fitting Angle: 90 deg
  • End 2 Flare Fit Angle: 37 deg
  • Standard End 2 Fitting Size: #10
  • Standard End 1 Fitting Size: #8
  • End 2 Elbow Fitting Angle: 45 deg
  • Material: Steel
  • Finish: Zinc Plated
  • End 1 Fitting Type: Female Swivel Nut
  • End 2 Fitting Type: Female Swivel Nut

Ref #:

 VMRS: 026-013-017

Fits Models:

Daimler/Detroit Diesel and Freightliner Series

Weight (lbs.):

 2.0

Pkg. Dimensions (in):
