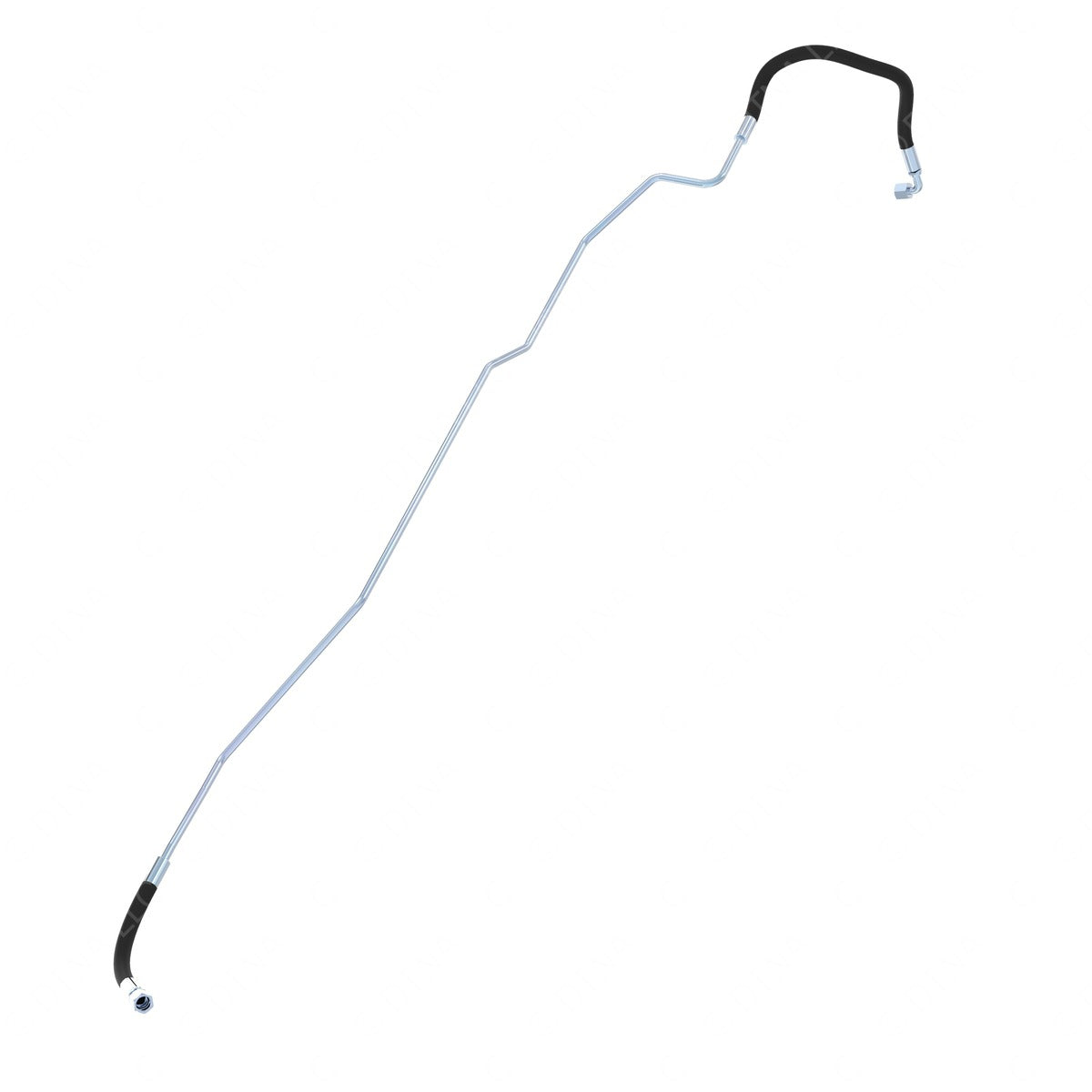

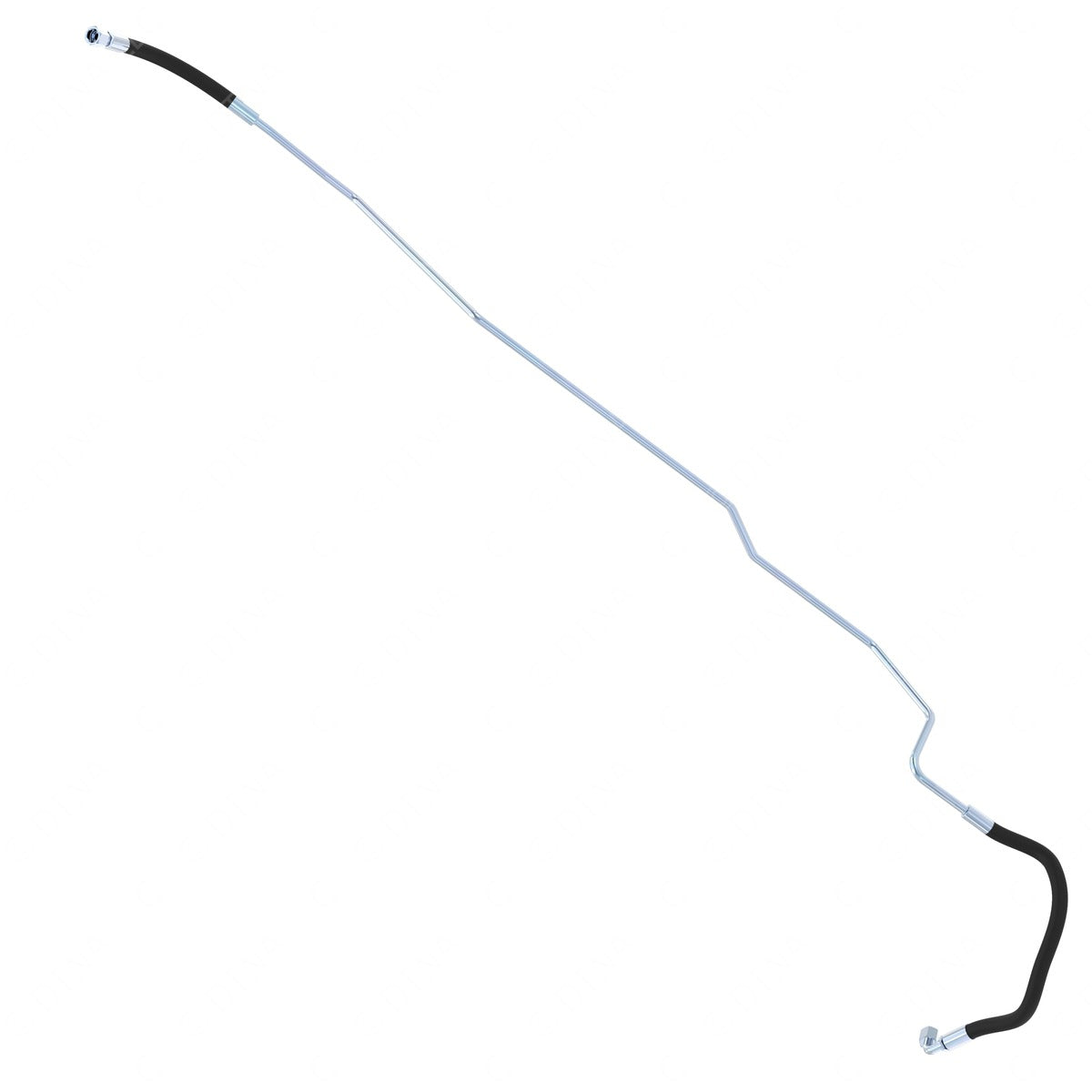

07-22765-000 -TUBE - SUPPLY, DD15, M-ITOC, DD15, LEFT HAND

CALL TO VERIFY AVAILABILITY

Description:	Temperature Rating: -40 to 300 Deg.F Maximum Operating Pressure: 250 psi Thickness: 1.27 mm Outer Diameter: 12.70 mm Inner Diameter: 10.16 mm Overall Length: 2366.80 mm Tube 2 Inner Diameter: 12.70 mm Tube 2 Wall Thickness: 7.62 mm End 1 Flare Fit Angle: 37 deg End 1 Elbow Fitting Angle: 90 deg End 2 Flare Fit Angle: 37 deg Standard End 2 Fitting Size: #8 Standard End 1 Fitting Size: #8 Material: Steel Finish: Zinc Plated End 1 Fitting Type: Female Swivel Nut End 2 Fitting Type: Straight Female Swivel Nut
Ref #:	VMRS: 026-013-017
Fits Models:	Daimler/Detroit Diesel and Freightliner Series
Weight (lbs.):	2.75
Pkg. Dimensions (in):
