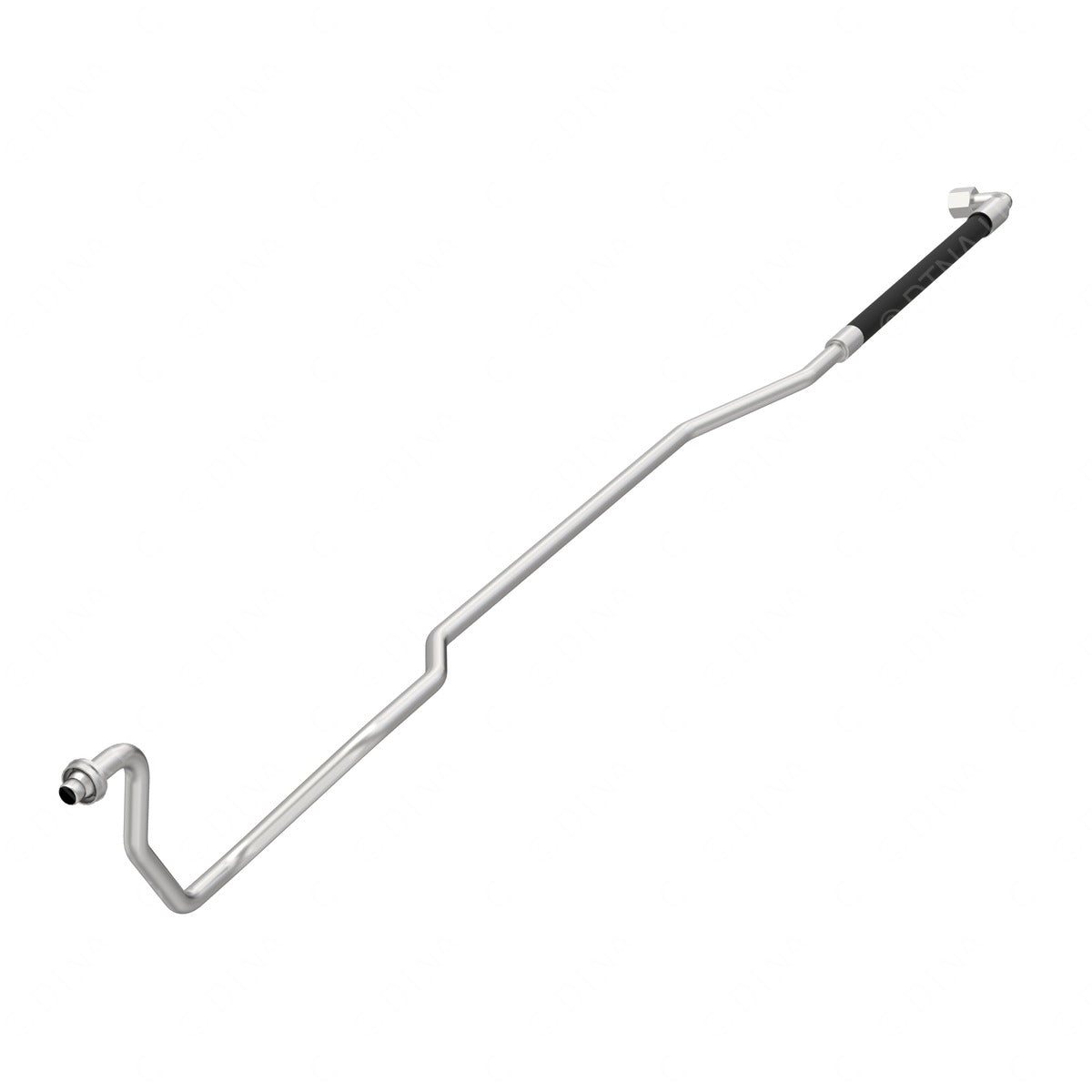

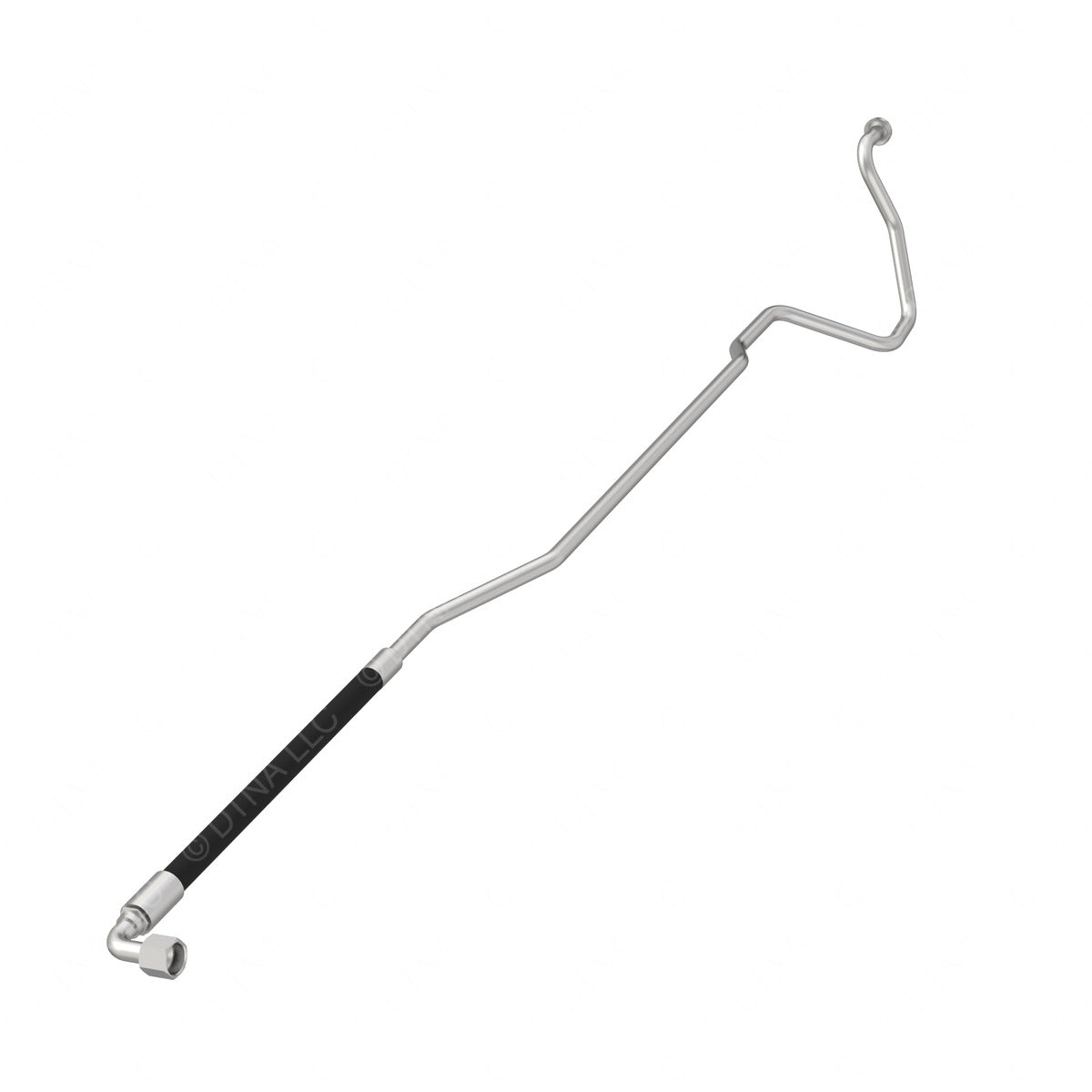

07-22192-001 - TUBE-RETURN,ISC,ITOC,M2106,PTO

Name: 07-22192-001 - TUBE-RETURN,ISC,ITOC,M2106,PTO
Brand: CD'S Parts
Availability: InStock

$0.00 USD

Sale Sold out

Quantity

CALL TO VERIFY AVAILABILITY- DISCONTINUED

Description:	Temperature Rating: -40 to 300 Deg.F Maximum Operating Pressure: 250 psi Thickness: 1.24 mm Outer Diameter: 19.05 mm Inner Diameter: 16.56 mm Overall Length: 1925.60 mm Tube 2 Inner Diameter: 19.05 mm End 1 Flare Fit Angle: 37 deg End 1 Elbow Fitting Angle: 90 deg End 2 Flare Fit Angle: 90 deg Standard End 1 Fitting Size: #12 End 2 Elbow Fitting Angle: 90 deg Material: Steel Finish: Zinc Plated End 1 Fitting Type: Female Swivel Nut End 2 Fitting Type: Quick Connector
Ref #:	VMRS: 026-013-017
Fits Models:	Daimler/Detroit Diesel and Freightliner Series
Weight (lbs.):	2.0
Pkg. Dimensions (in):
