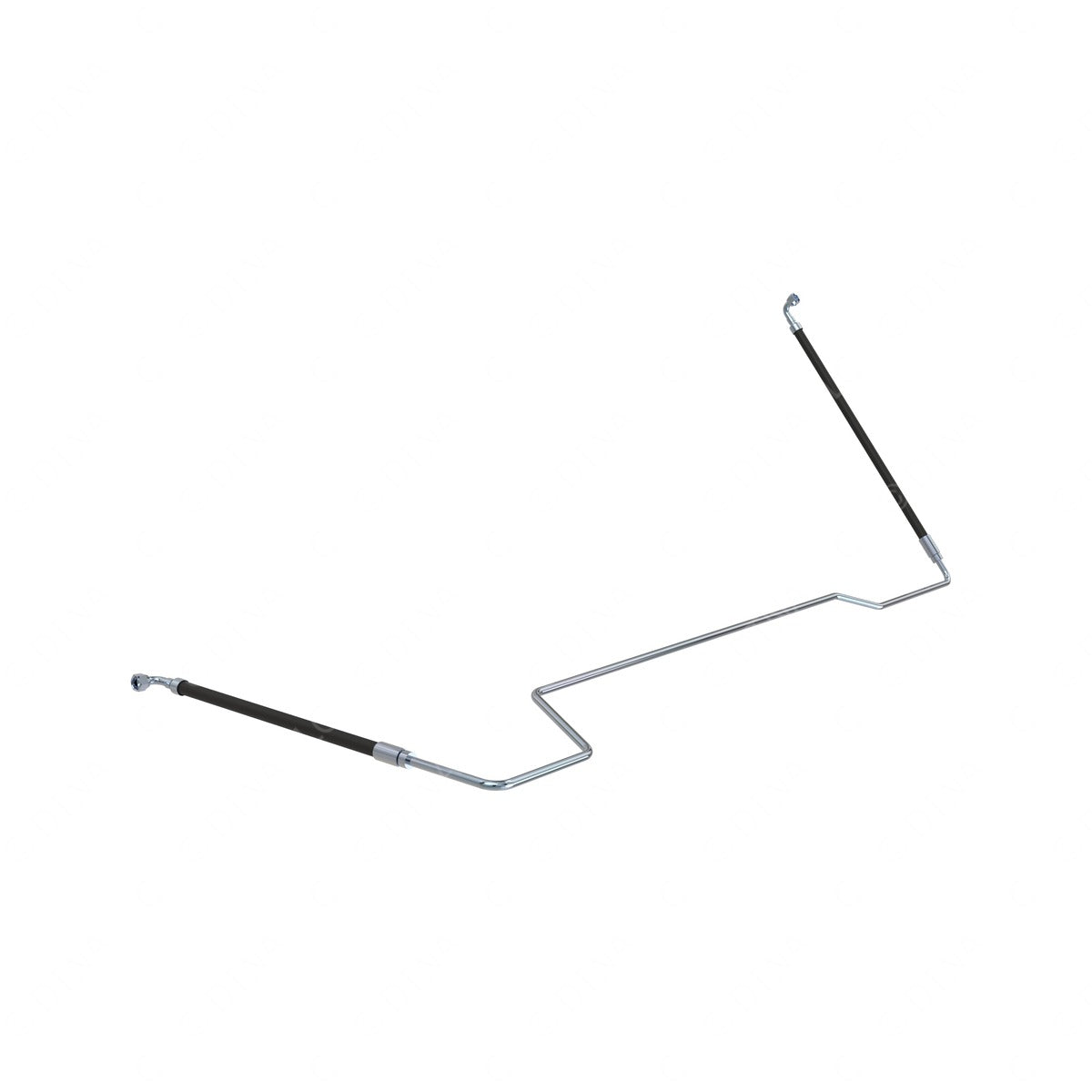

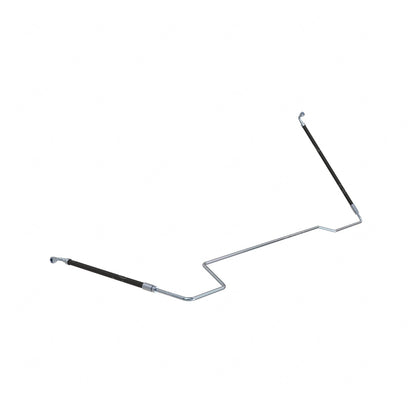

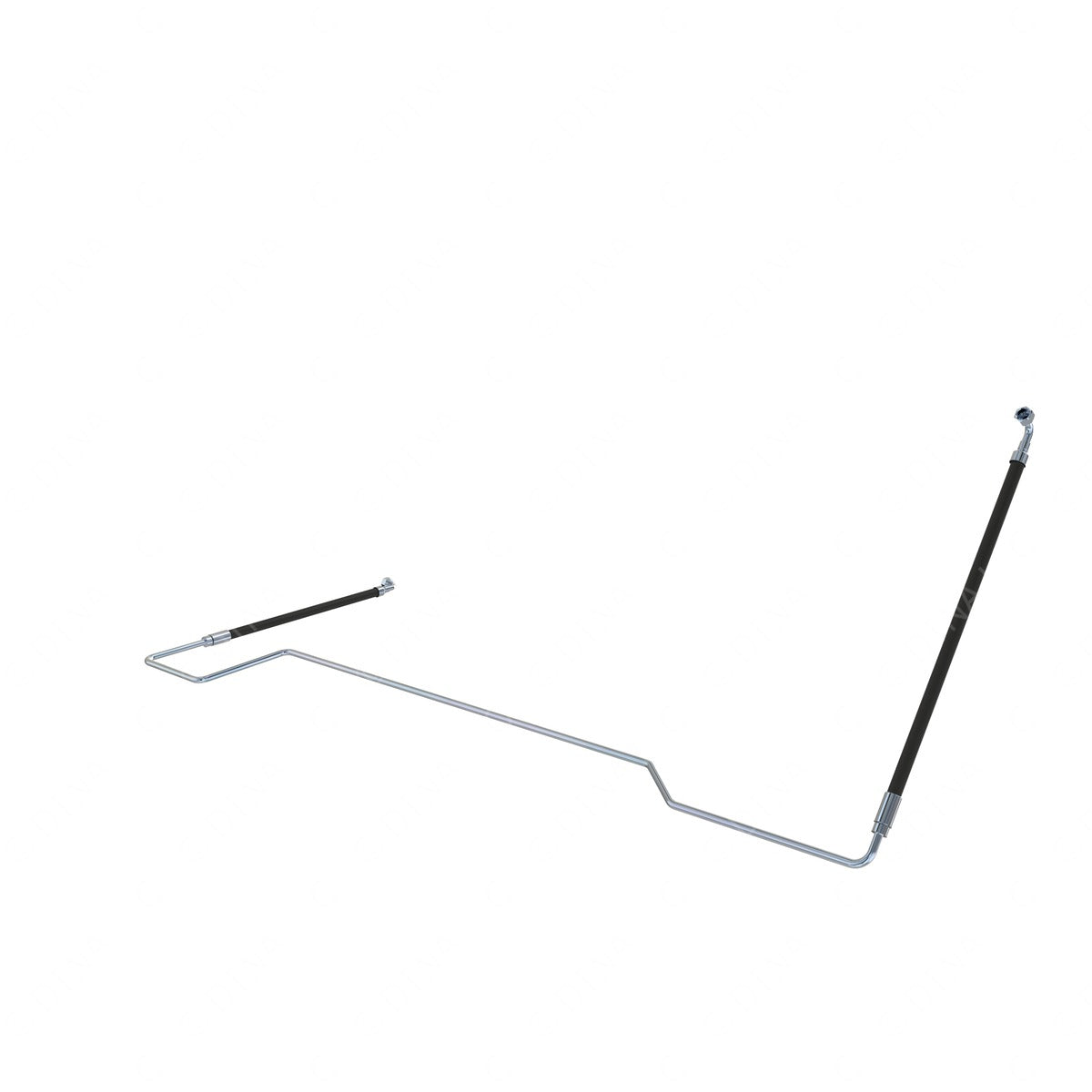

07-22013-000 - TUBE-SUPPLY,M-ITOC,ISX,RH

Name: 07-22013-000 - TUBE-SUPPLY,M-ITOC,ISX,RH
Brand: CD'S Parts
Price: 235.84 USD
Availability: InStock

$235.84 USD

Sale Sold out

Quantity

CALL TO VERIFY AVAILABILITY

Description:	Temperature Rating: -40 to 300 Deg.F Maximum Operating Pressure: 250 psi Thickness: 1.24 mm Outer Diameter: 12.70 mm Inner Diameter: 10.21 mm Overall Length: 2776.30 mm Center To Center Length: 1594.50 mm Tube 2 Inner Diameter: 12.70 mm End 1 Flare Fit Angle: 90 deg End 1 Elbow Fitting Angle: 90 deg End 2 Flare Fit Angle: 90 deg Standard End 2 Fitting Size: #8 Standard End 1 Fitting Size: #8 End 2 Elbow Fitting Angle: 90 deg Material: Steel Finish: Zinc Plated End 1 Fitting Type: Female Swivel Nut End 2 Fitting Type: Female Swivel Nut
Ref #:	VMRS: 026-013-017
Fits Models:	Daimler/Detroit Diesel and Freightliner Series
Weight (lbs.):	2.75
Pkg. Dimensions (in):
