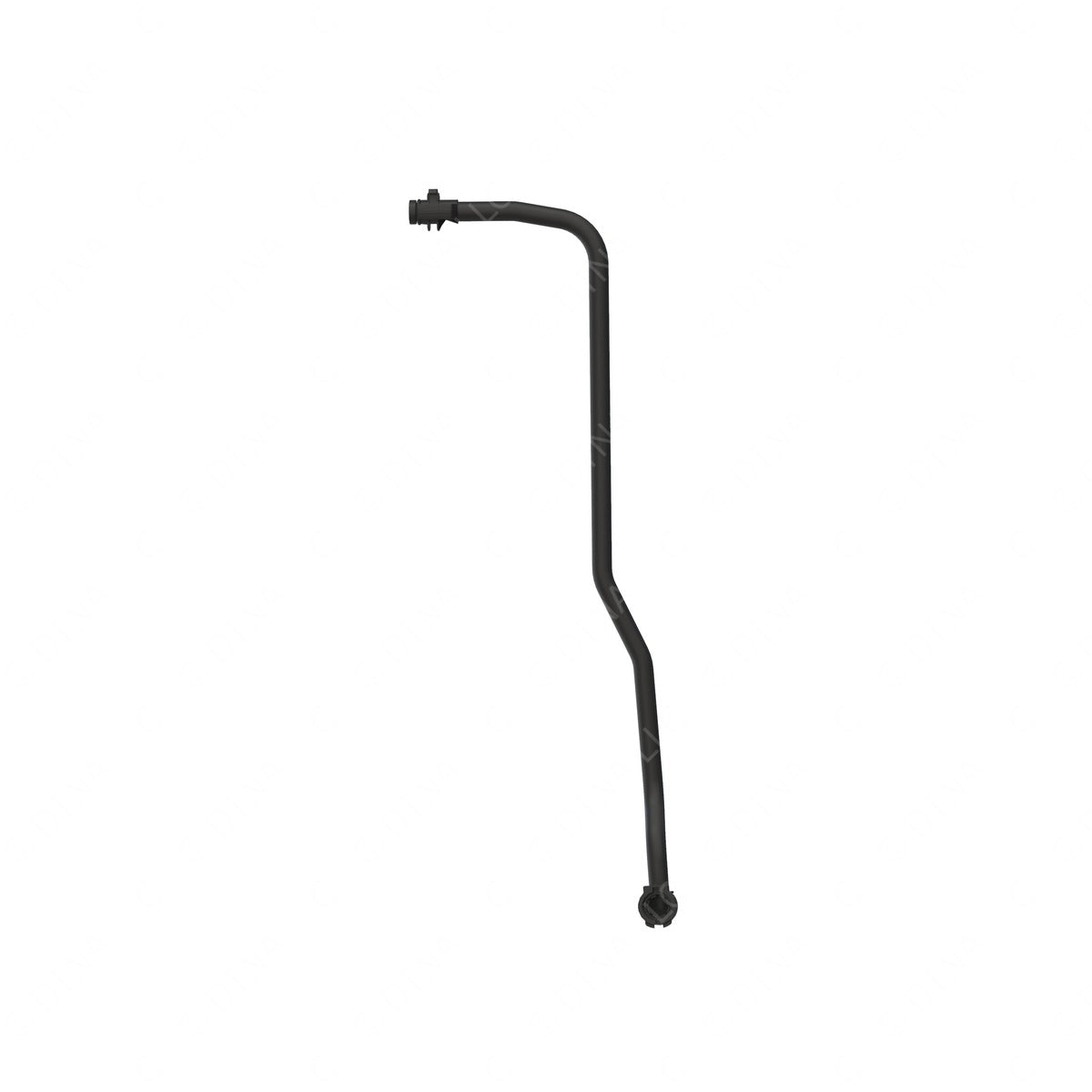

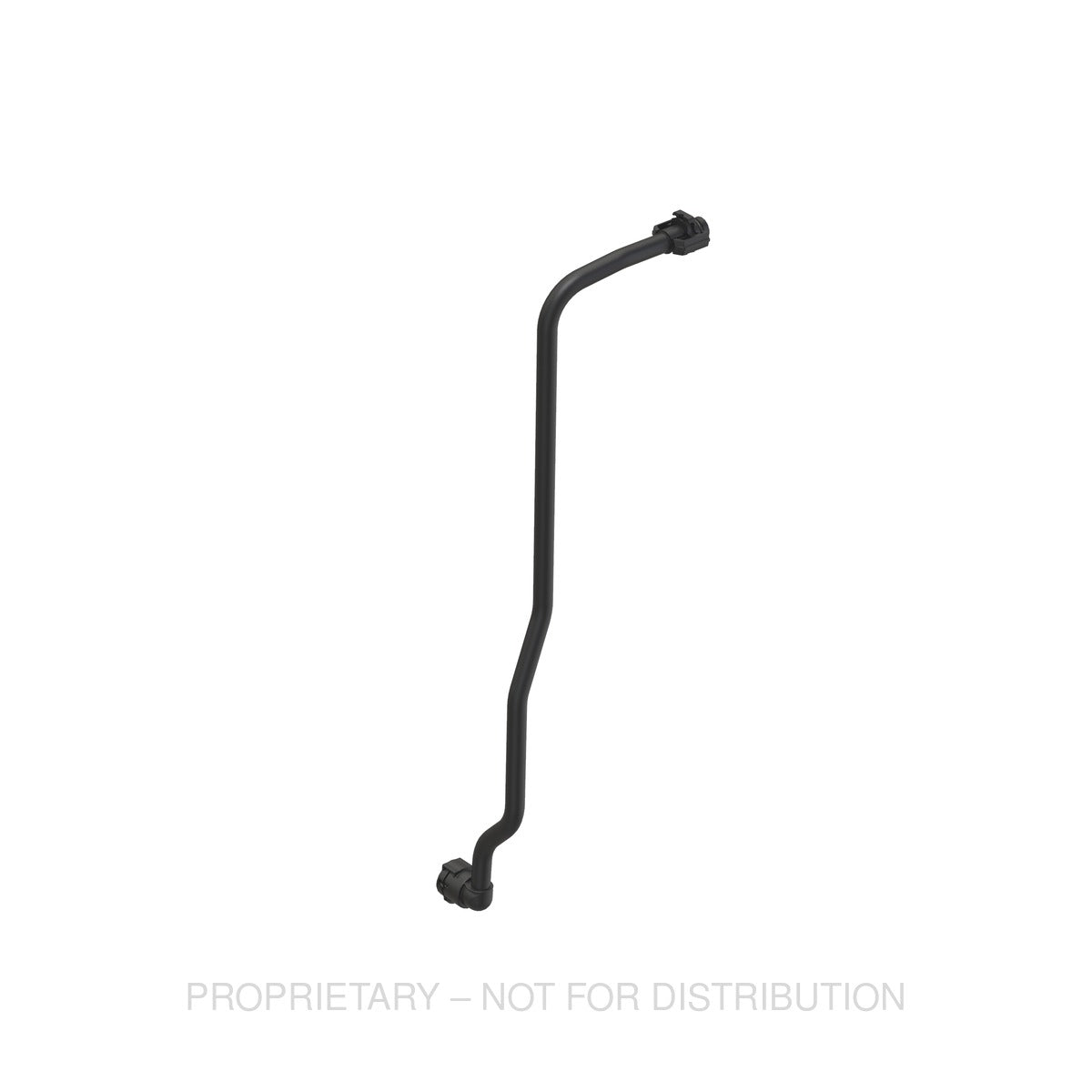

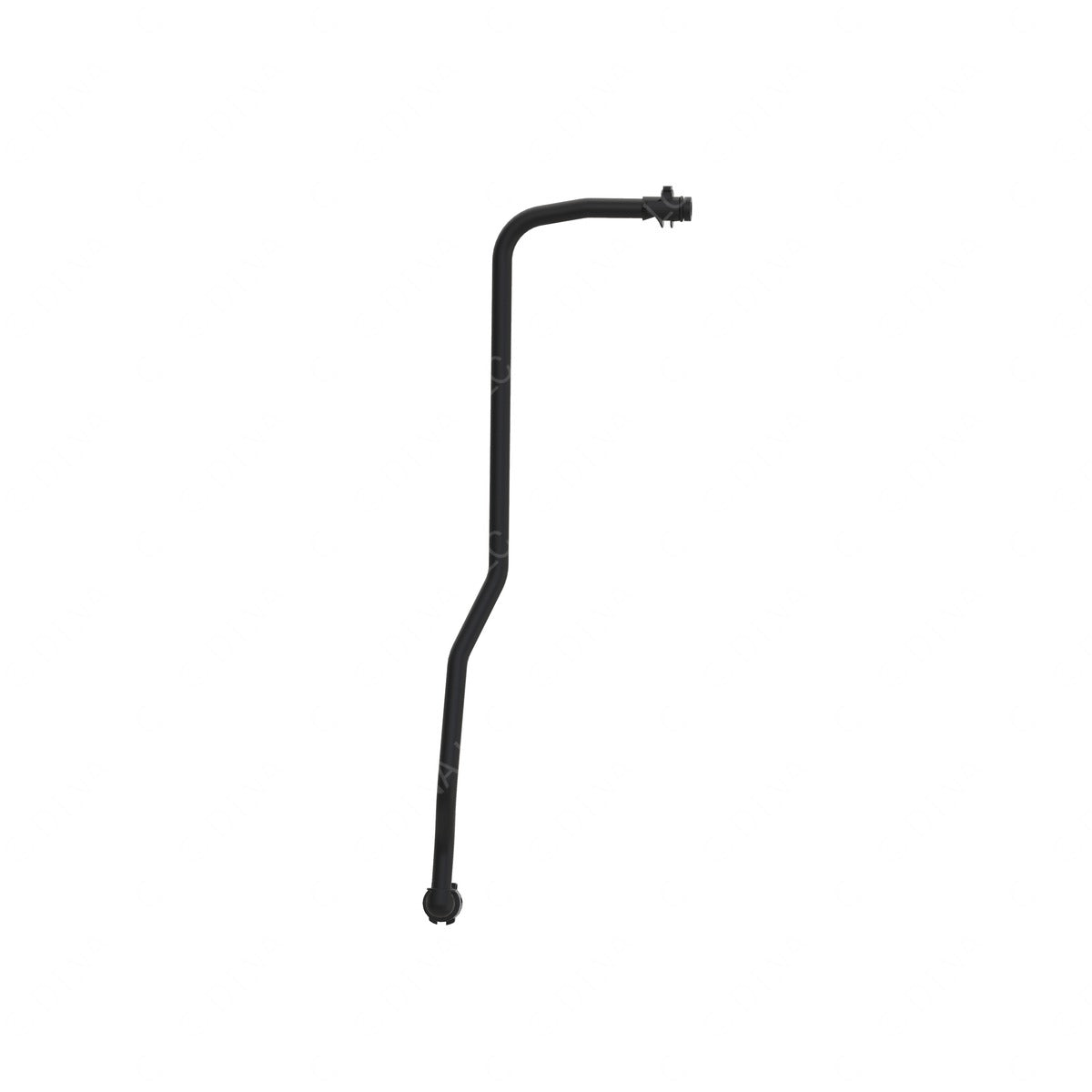

04-32077-000 - TUBE-COOLANT,HDEP,HDR TO PUMP,

CALL TO VERIFY AVAILABILITY

Description:	Material: Aluminum End 1 Fitting Type: Norma PS3-NW8-10-90° End 2 Fitting Type: SV246 Straight Connector NG12 NS10 Outer Diameter: 13 mm Inner Diameter: 10 mm Wall Thickness: 1.50 mm Center To Center Length: 454 mm Operating Temperature: -40 to 120 Deg.C Operating Pressure: 1.50 bar Burst Pressure: 4 bar
Ref #:	VMRS: 043-007-143
Fits Models:	Daimler/Detroit Diesel and Freightliner Series
Weight (lbs.):	1.0
Pkg. Dimensions (in):
