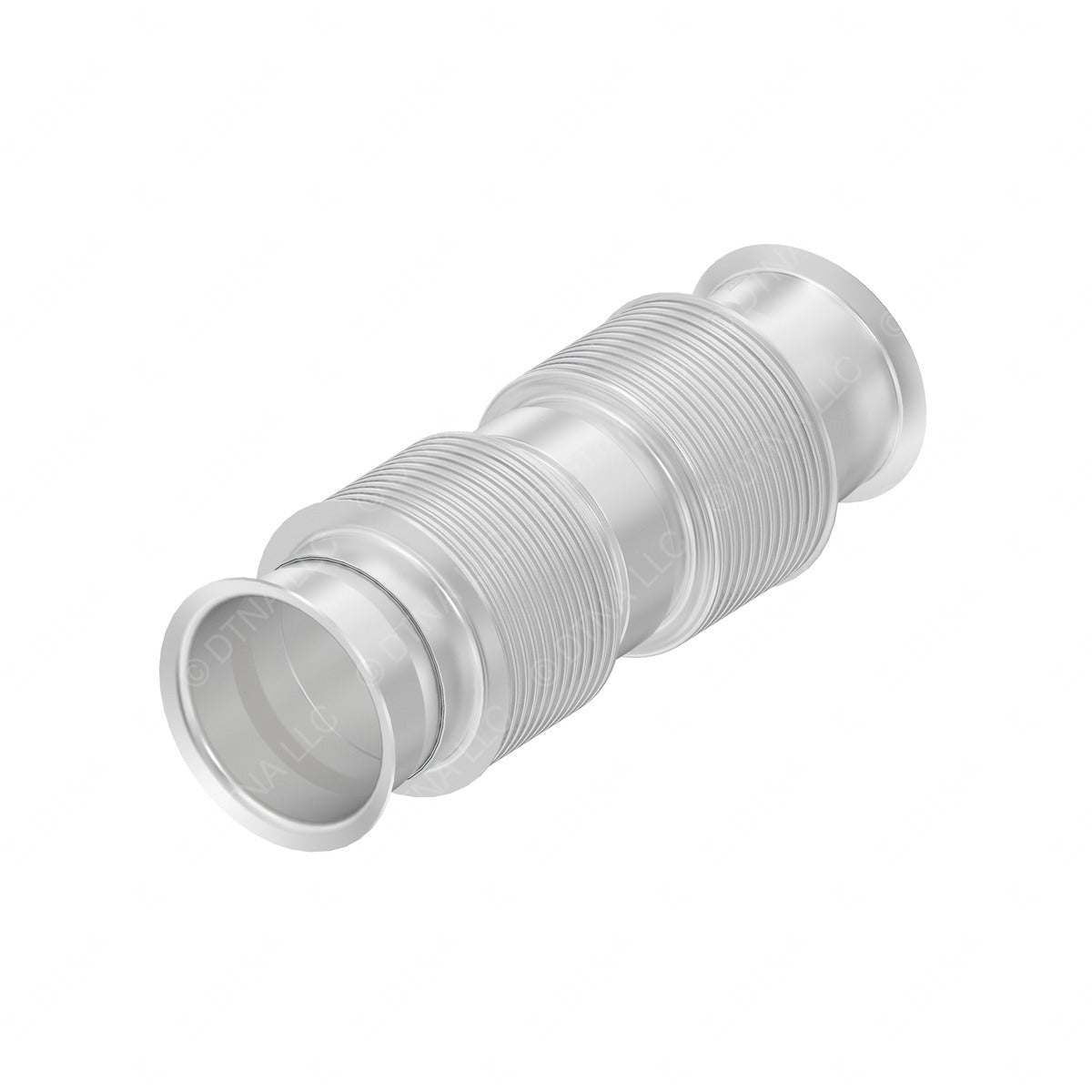

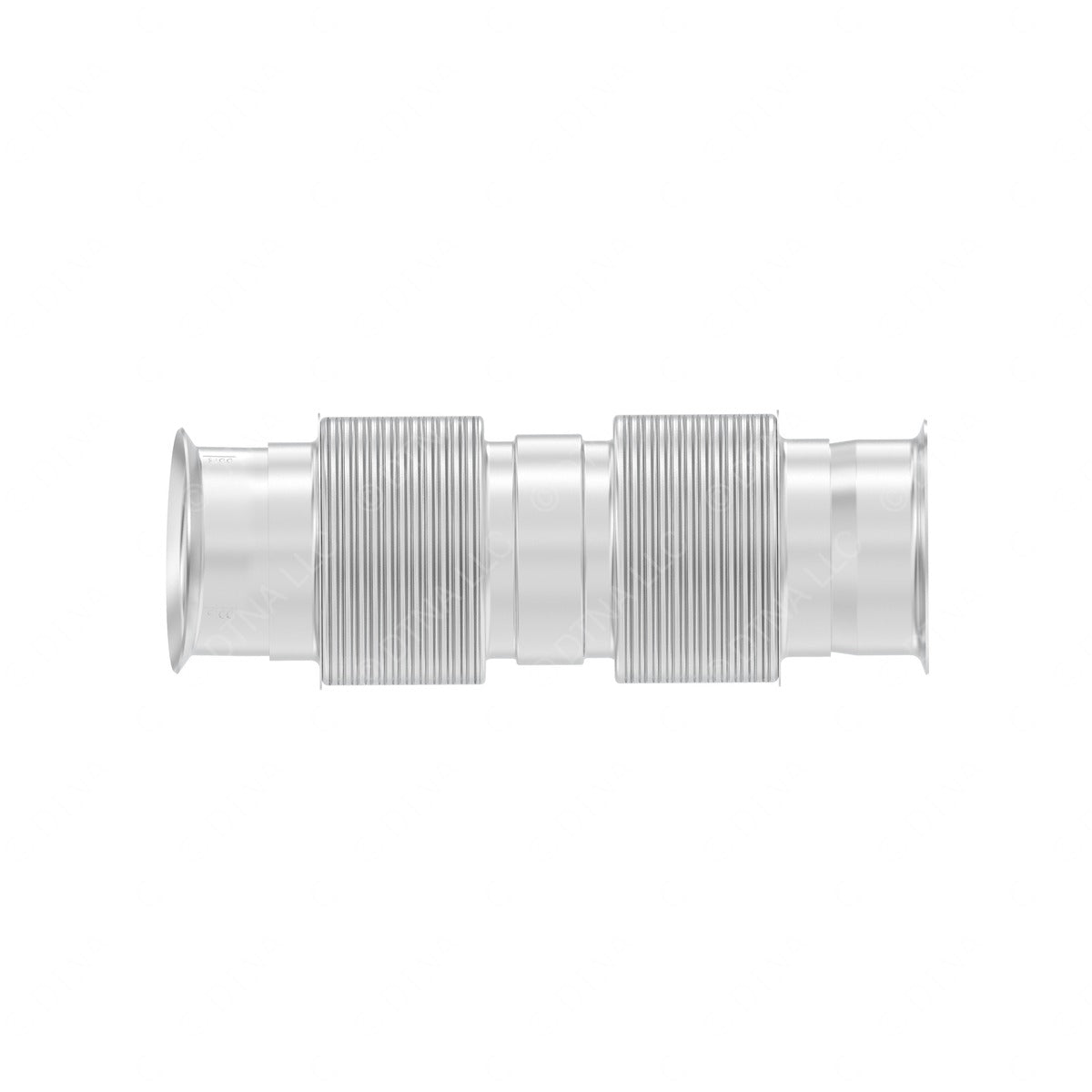

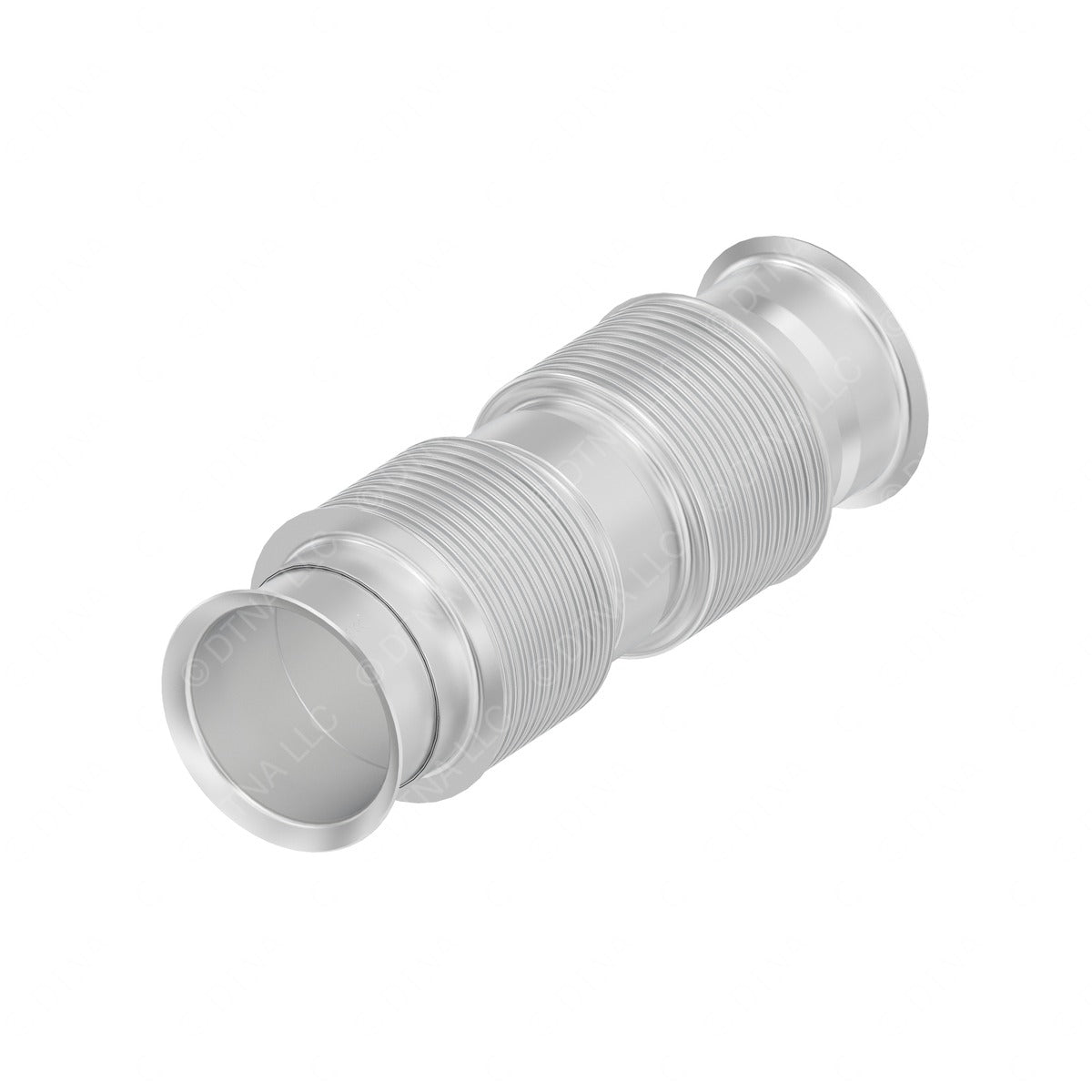

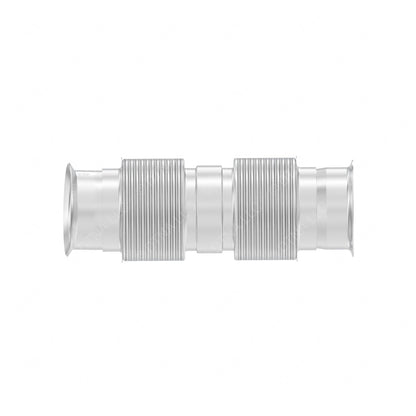

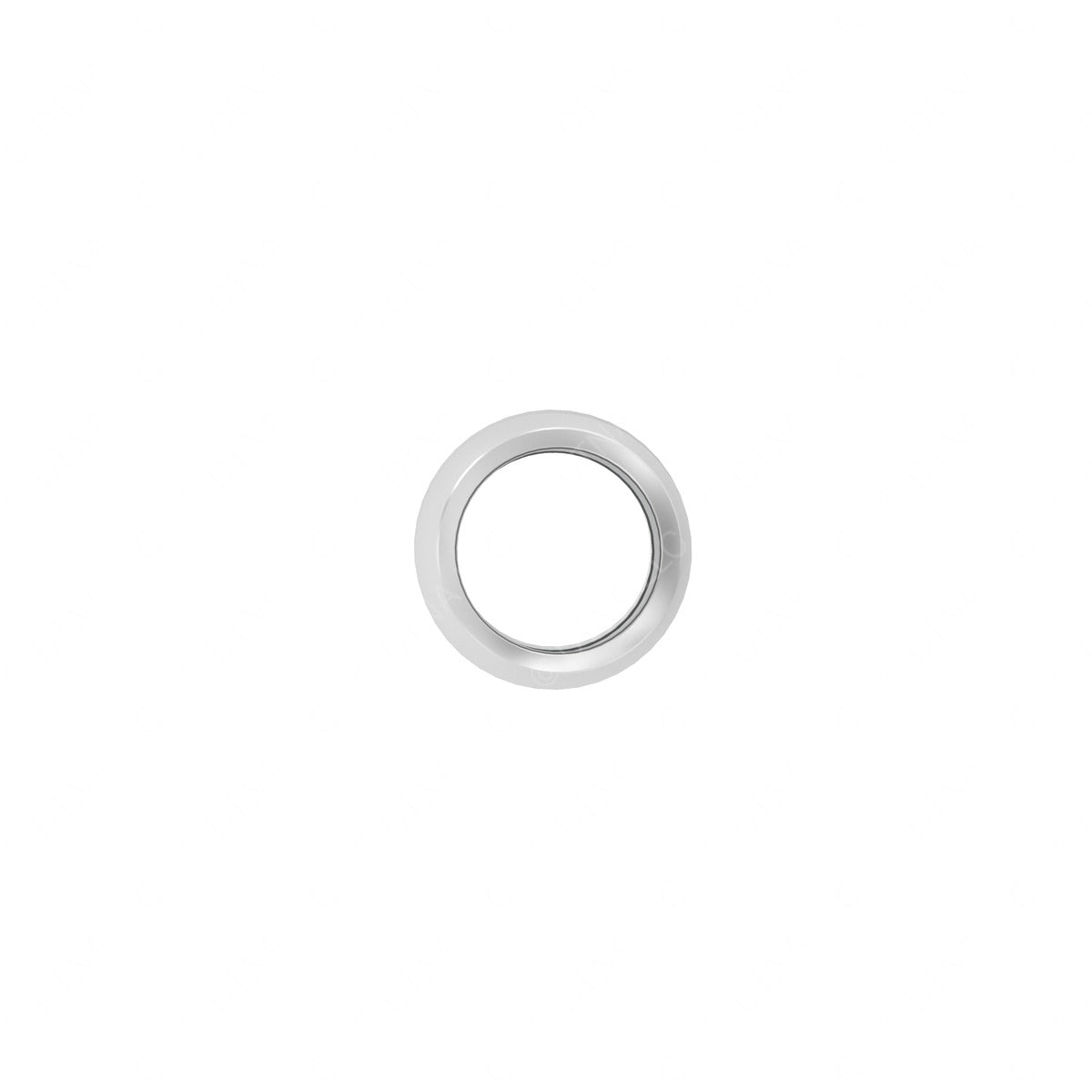

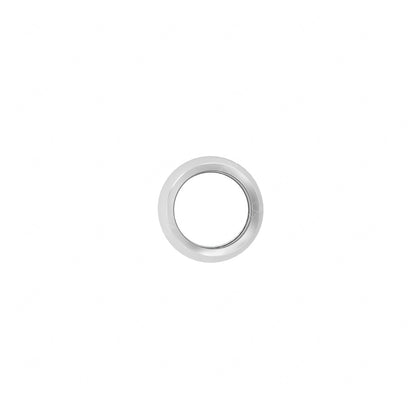

04-31271-000 - BELLOWS-4",P3,DDC,SENIOR

CALL TO VERIFY AVAILABILITY

Description:	Tube Wall Thickness: 1.65 mm Flare Fit Angle: 70 deg End 1 Inner Diameter: 98.30 mm End 2 Inner Diameter: 101.90 mm Center To Center Length: 364.30 mm Flange Diameter: 192 mm Bellows Diameter: 130.80 mm End 2 Flare Fit Angle: 70 deg Material: Stainless Steel End 1 Fitting Type: Spherical Flange Fitting End 2 Fitting Type: Flare Fitting
Ref #:	VMRS: 043-006-046
Fits Models:	Daimler/Detroit Diesel and Freightliner Series
Weight (lbs.):	5.25
Pkg. Dimensions (in):
