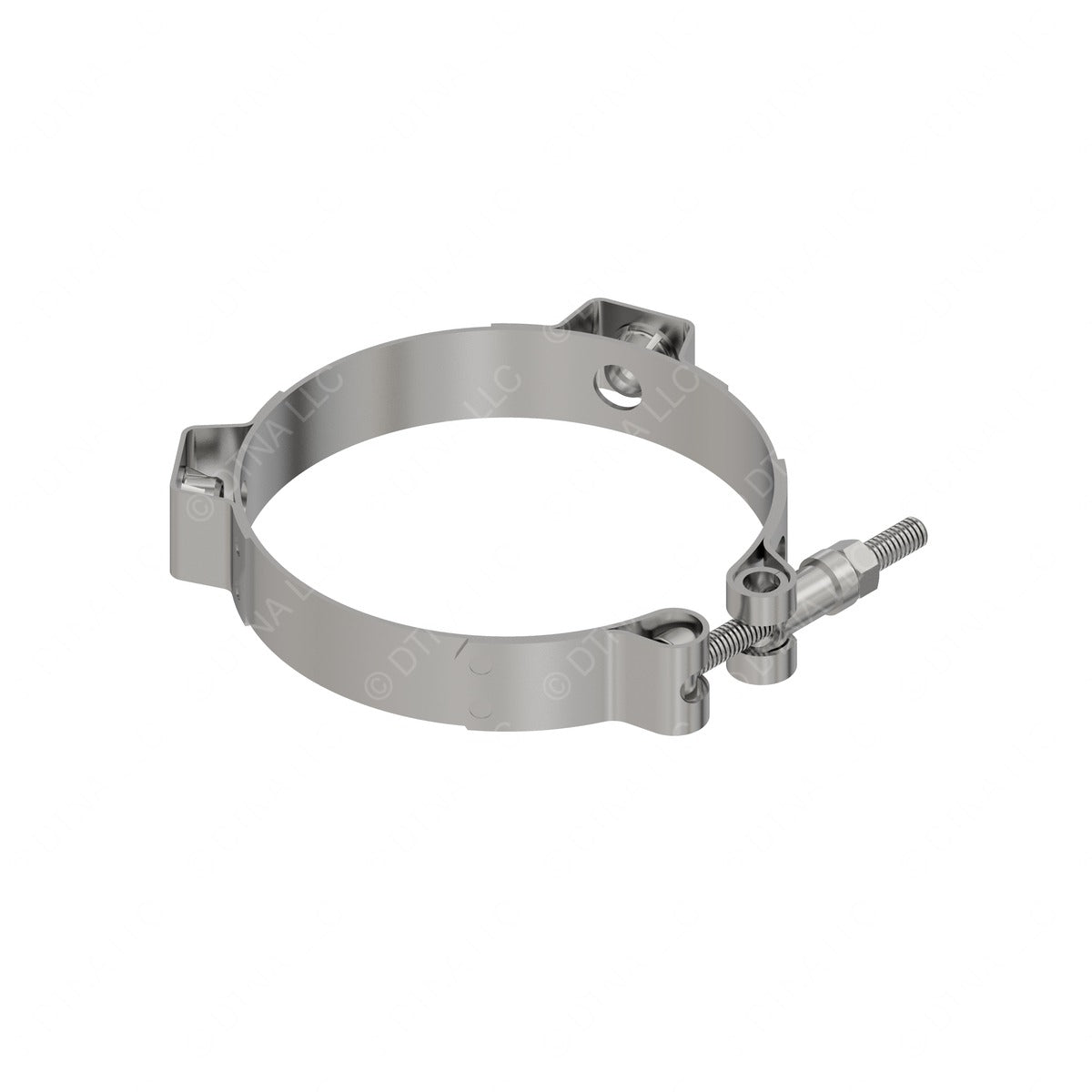

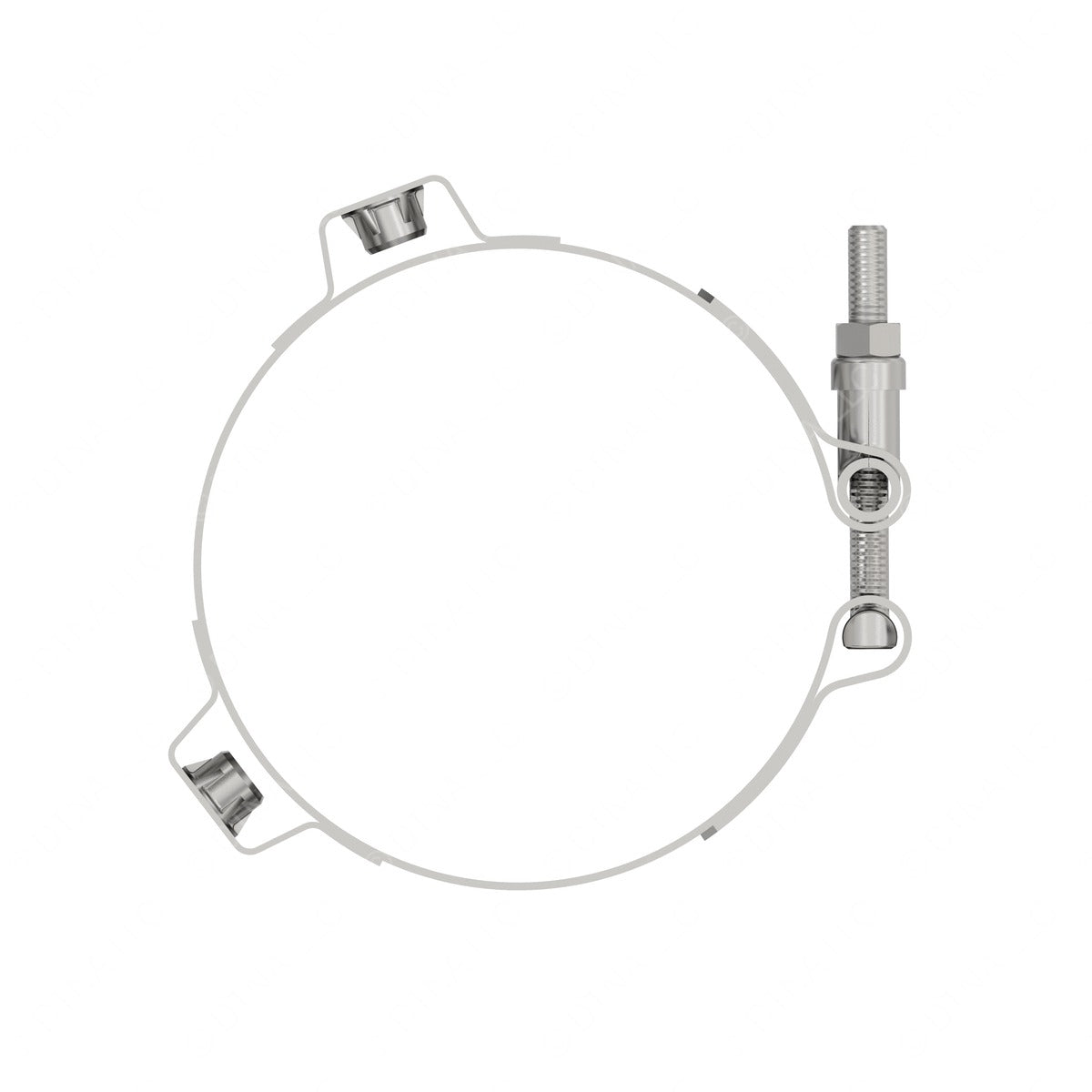

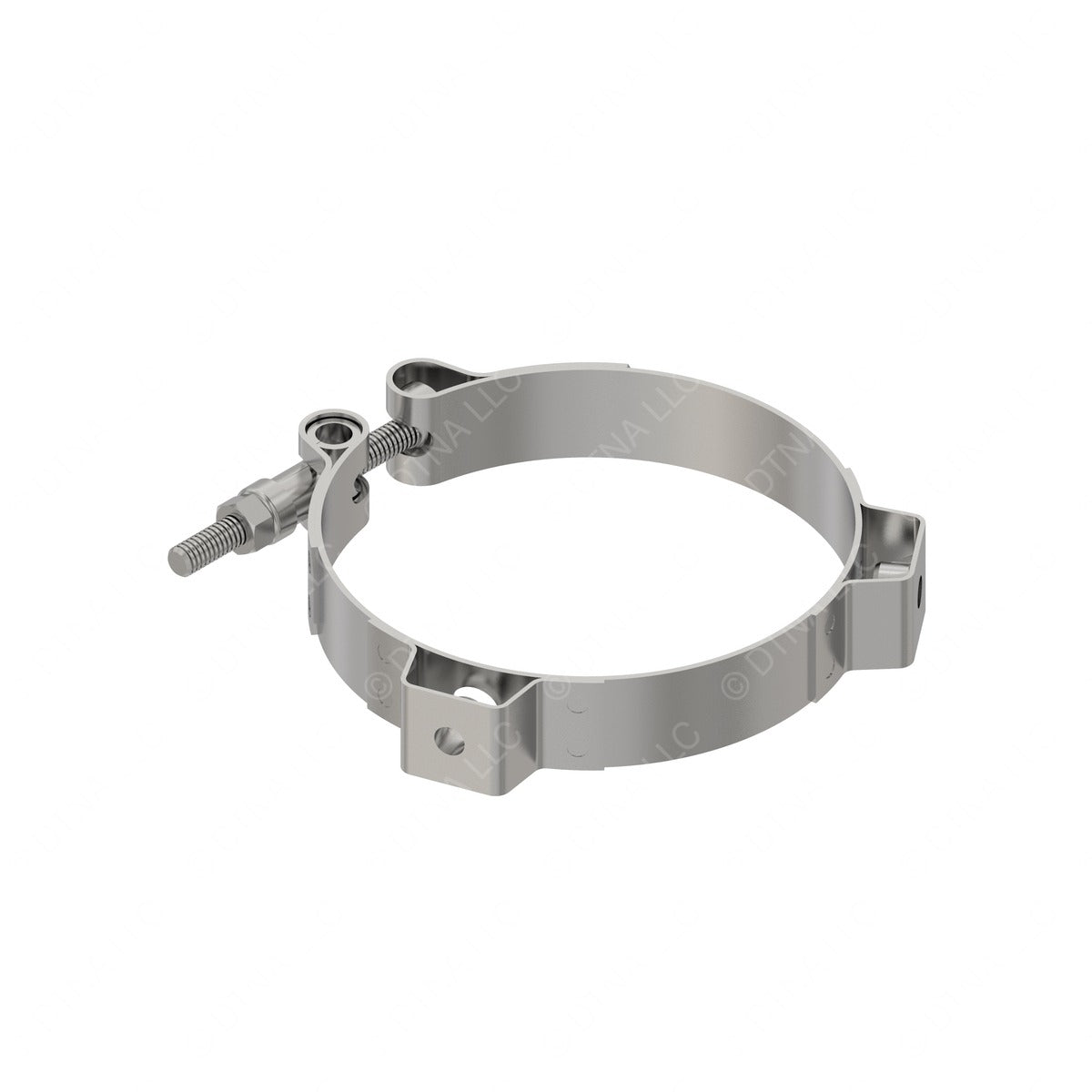

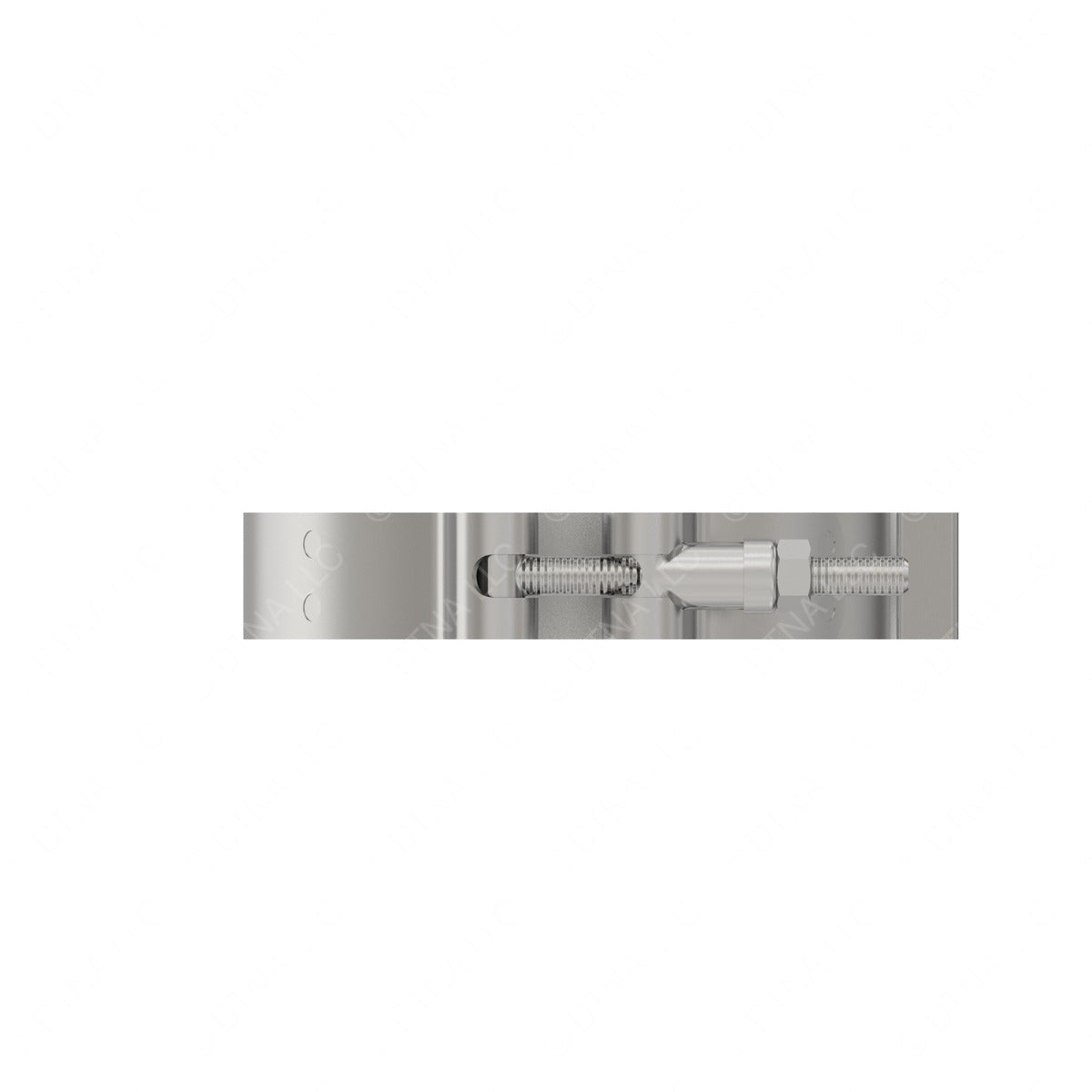

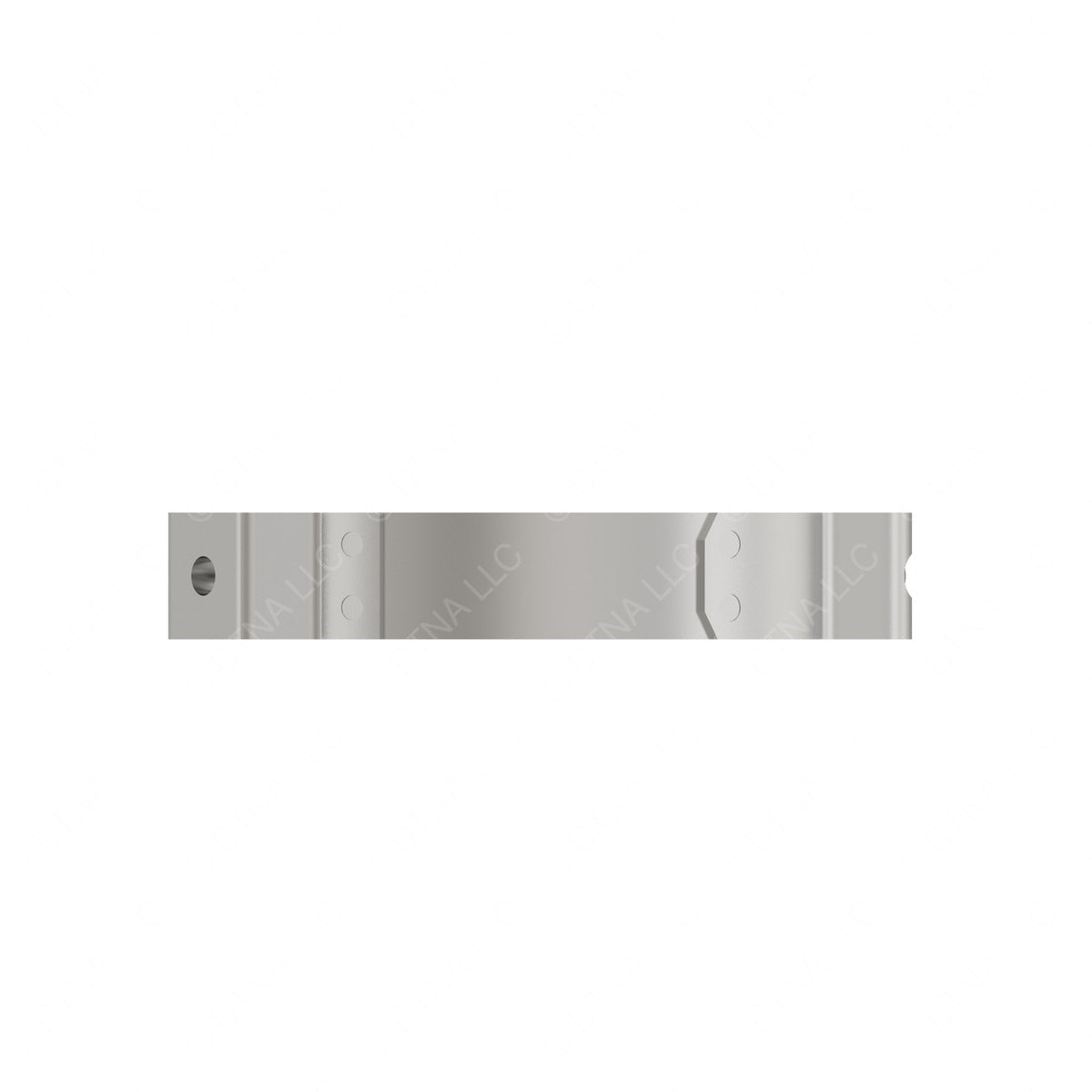

04-24279-000 - CLAMP-EXHAUST,HEAT SHIELD, 5"

04-24279-000 - CLAMP-EXHAUST,HEAT SHIELD, 5"

$56.89 USD
$56.89 USD
Sale Sold out

04-24279-000 - CLAMP-EXHAUST,HEAT SHIELD, 5"

CALL TO VERIFY AVAILABILITY

Description:
  • Tightening Torque: 8.50 Nm
  • Nut Type: Lock Nut
  • Nut Material: Stainless Steel
  • Bracket Material: Steel
  • Bolt Material: Stainless Steel
  • Band Material: Stainless Steel
  • Bolt Type: T-Bolt
  • Bracket Finish: Zinc Coated
  • Bracket Type: Hat Bracket Type -2
  • Width: 1 in
  • Thickness: 0.06 in
  • Inner Diameter: 5 in
  • Nut Thread Size: 5/16-24 UNF2B in
  • Bracket Thickness: 0.05 in
  • Bolt Thread Size: 5/16-24 UNF2A in
  • Nominal Diameter: 127 mm
  • Bracket Mount Hole Diameter: 12.70 mm
  • Band Width: 25.40 mm
  • Band Thickness: 1.58 mm
  • Bolt Size: 5/16-24 x 3.25 in

Ref #:

 VMRS: 043-003-013

Fits Models:

Daimler/Detroit Diesel and Freightliner Series

Weight (lbs.):

 0.75

Pkg. Dimensions (in):
