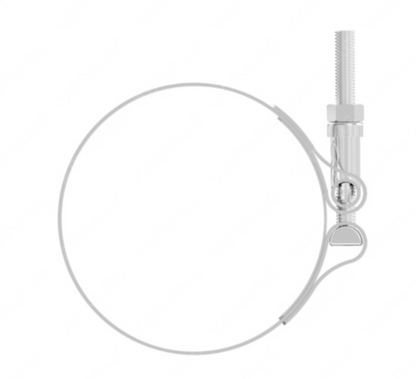

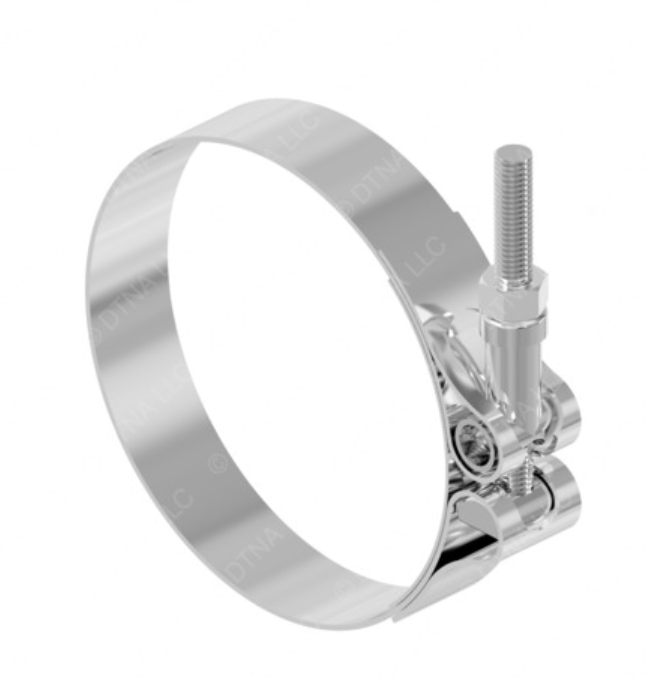

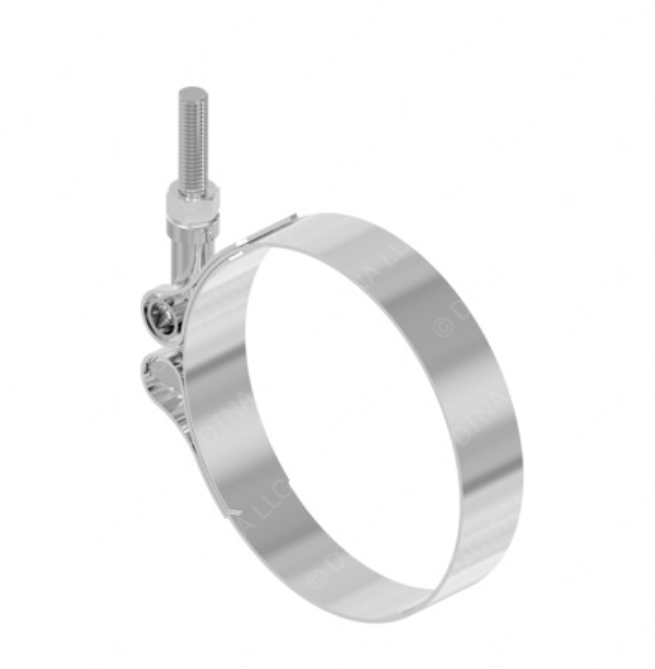

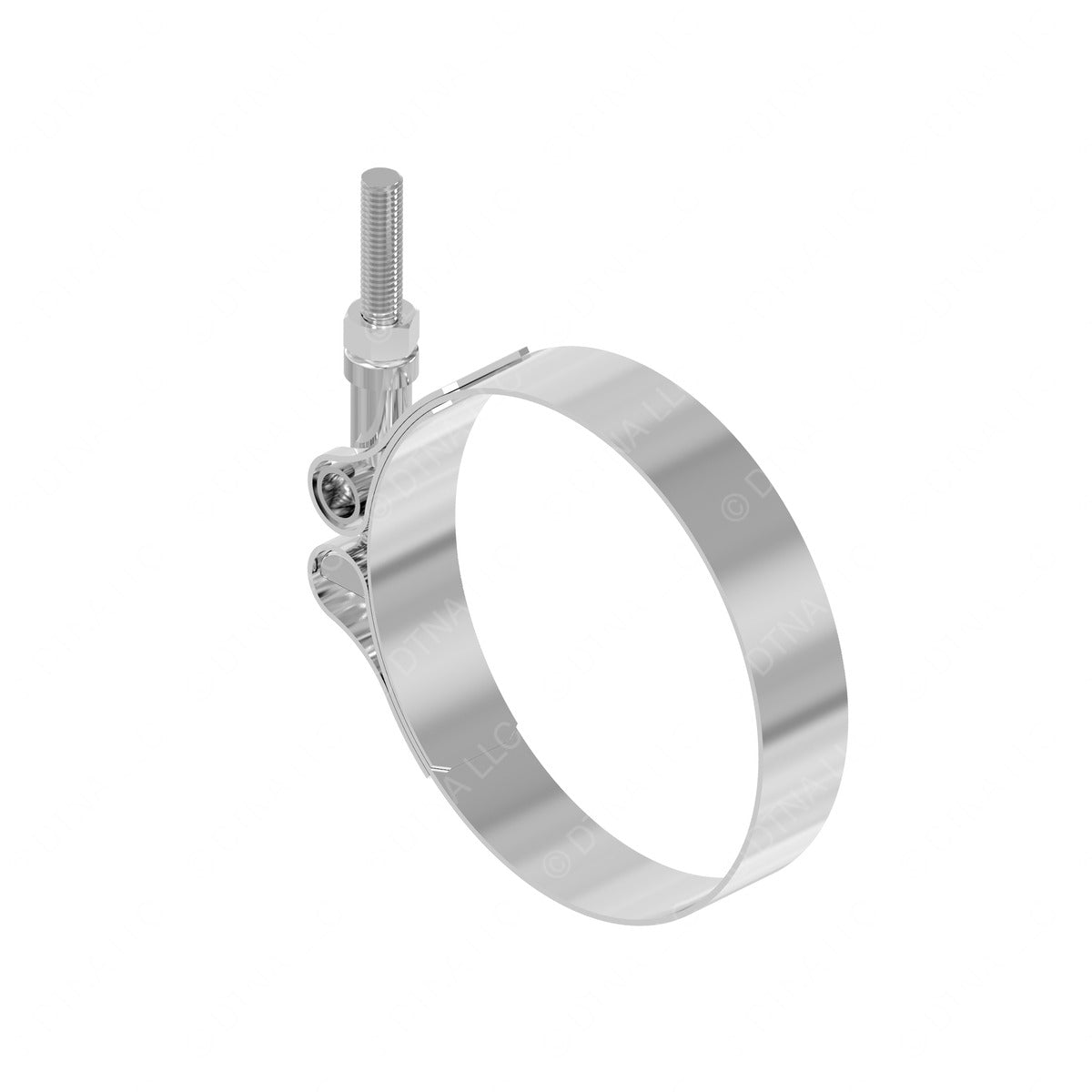

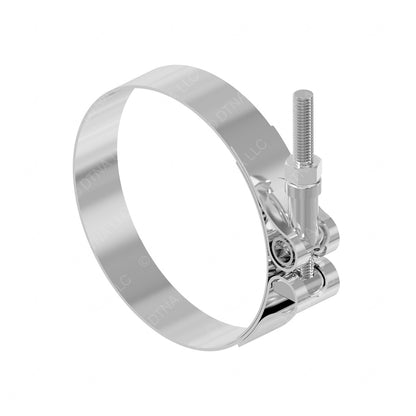

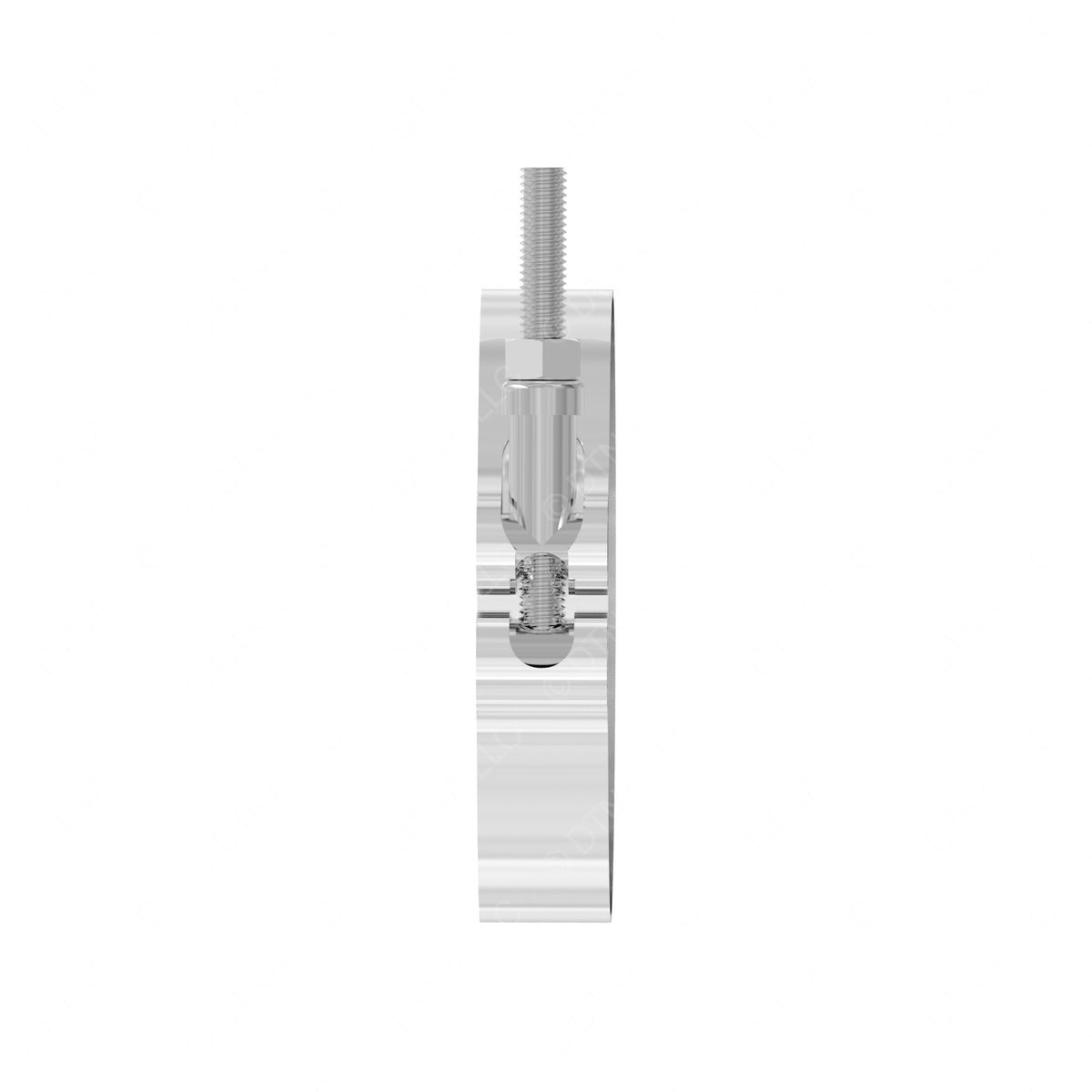

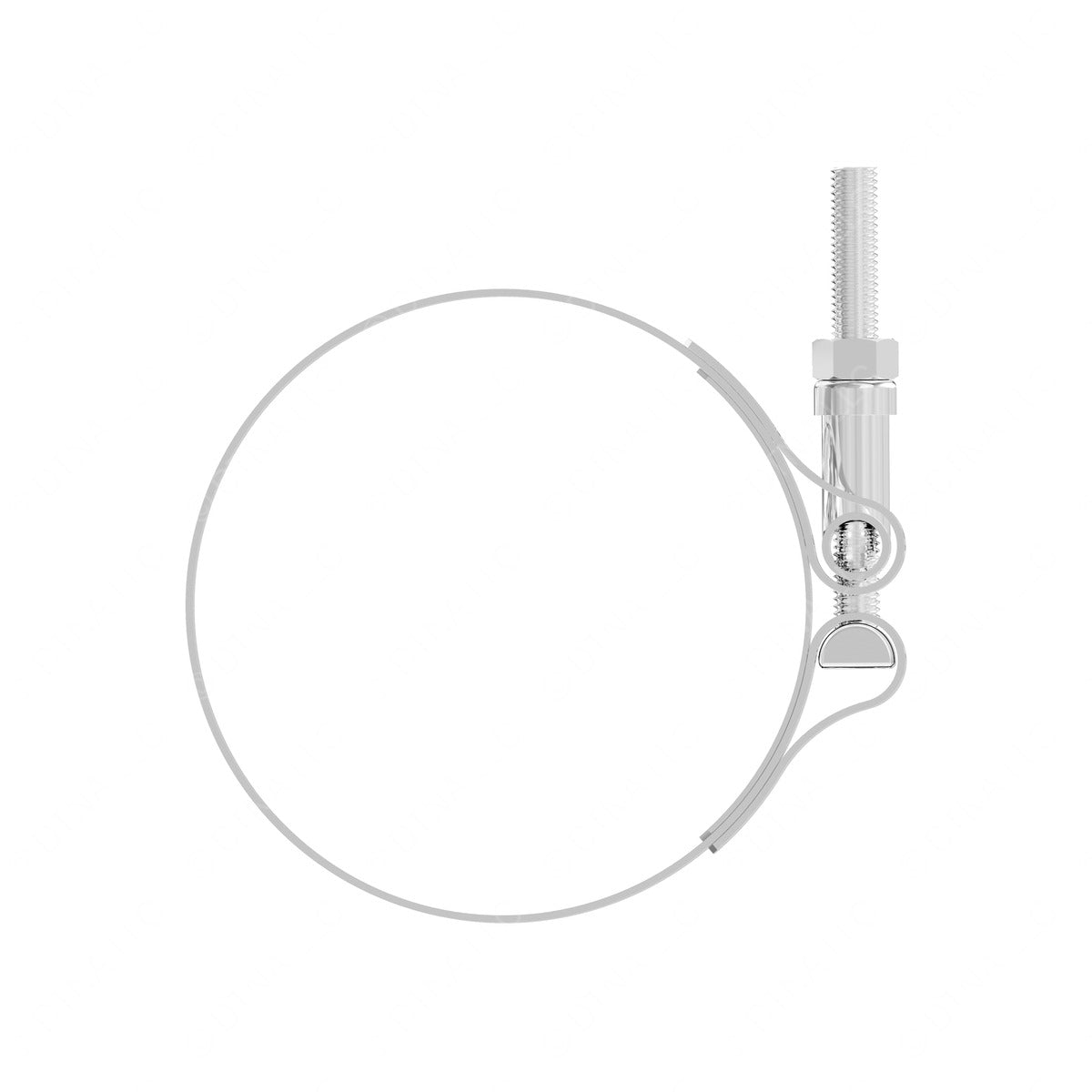

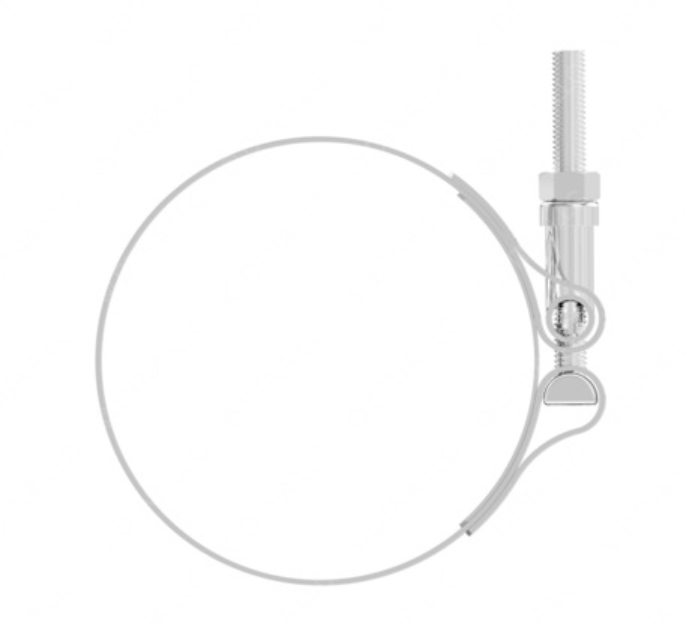

04-20164-000 -CLAMP T - EXHAUST SYSTEM BOLT 4 IN

04-20164-000 -CLAMP T - EXHAUST SYSTEM BOLT 4 IN

$17.25 USD
$17.25 USD
Sale Sold out

04-20164-000 -CLAMP T - EXHAUST SYSTEM BOLT4 INCH

CALL TO VERIFY AVAILABILITY

Description:
  • Tightening Torque: 11.30 Nm
  • Nut Type: Lock Nut
  • Nut Material: Stainless Steel
  • Bolt Material: Stainless Steel
  • Band Material: Stainless Steel
  • Bolt Type: T-Bolt
  • Width: 0.87 in
  • Thickness: 0.05 in
  • Inner Diameter: 4.13 in
  • Nut Thread Size: 5/16-24 UNF2B in
  • Maximum Diameter: 109.50 mm
  • Screw Size: 5/16-24 X 3.25 in
  • Clamping Range: 101.60 - 109.50 mm
  • Minimum Diameter: 101.60 mm
  • Bolt Thread Size: 5/16-24 UNF2A in
  • Nominal Diameter: 105.60 mm
  • Band Width: 22.20 mm
  • Band Thickness: 1.27 mm
  • Grip Range: 4 to4.31 in

Ref #:

 04-20164-000, 420164000, 0420164. 420164, VMRS: 043-003-013

Fits Models:

Daimler/Detroit Diesel Series

Weight (lbs.):

 1.0

Pkg. Dimensions (in):

 4 x 4 x 4
