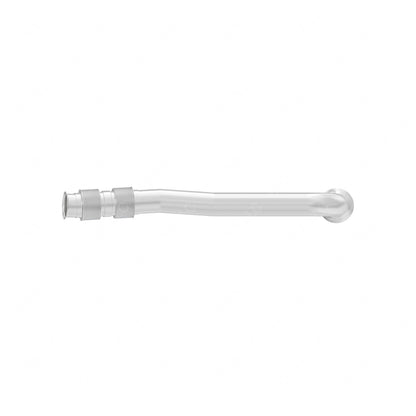

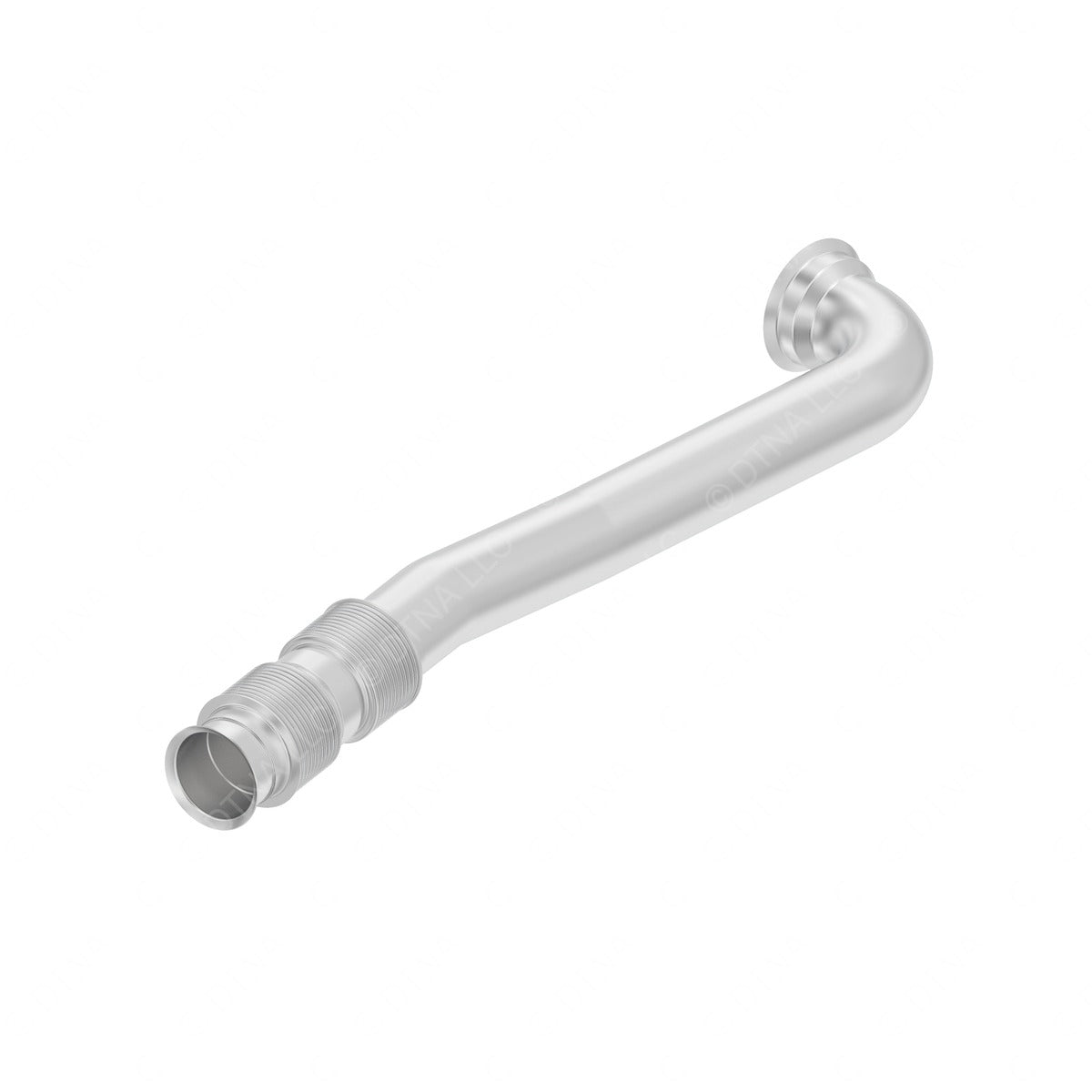

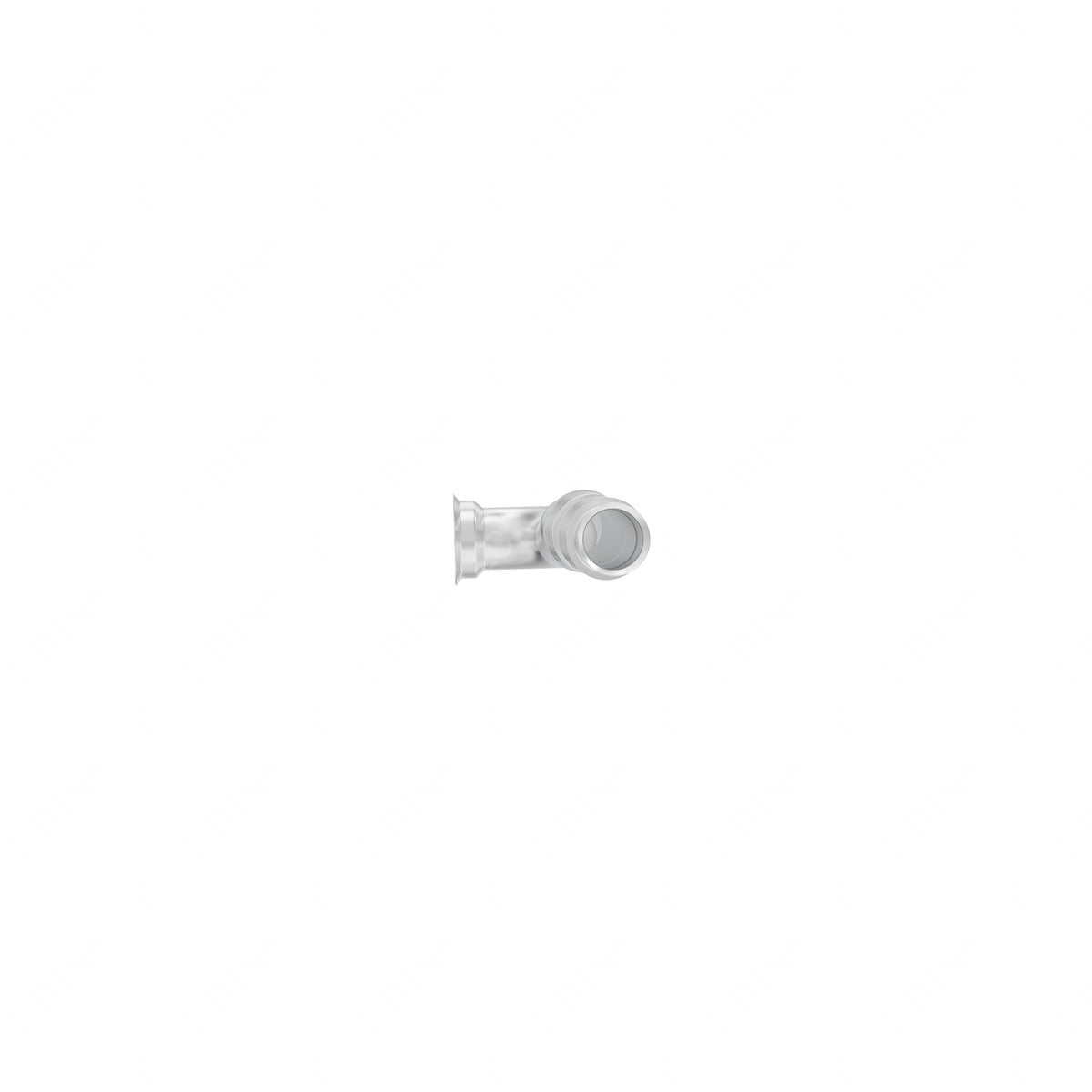

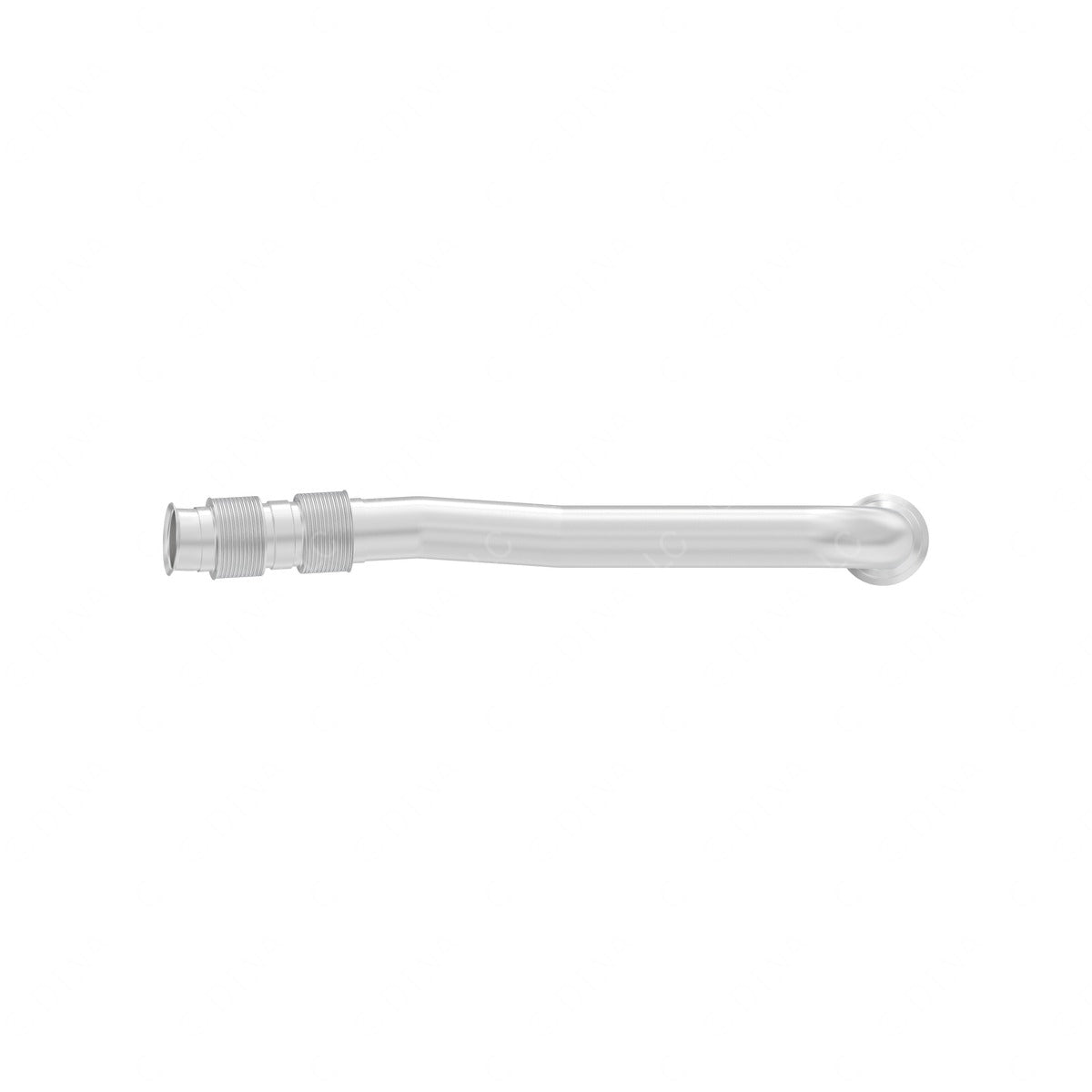

04-33675-000 - BELLOWS-P4,DD13,1US,ATS INLET

CALL TO VERIFY AVAILABILITY

Description:	Outer Diameter: 101.60 mm Inner Diameter: 98.30 mm Tube Wall Thickness: 1.65 mm End 1 Inner Diameter: 98.30 mm End 2 Inner Diameter: 123.70 mm Center To Center Length: 1188.40 mm Flange Diameter: 192.00, 222.00 mm Bellows Diameter: 130.81 mm Material: Stainless Steel End 1 Fitting Type: Spherical Flange Fitting End 2 Fitting Type: Spherical Flange Fitting
Ref #:	VMRS: 043-006-046
Fits Models:	Daimler/Detroit Diesel and Freightliner Series
Weight (lbs.):	10.0
Pkg. Dimensions (in):
